Jauch新型精密O 10.0-JTP53HCV-F-K-3.3-1515-08X0-LF非常適合GNSS/GPS應用

來源：http://m.lbfp.com.cn 作者：億金電子 2024年03月20

Jauch新型精密O 10.0-JTP53HCV-F-K-3.3-1515-08X0-LF非常適合GNSS/GPS應用
新型精密（VC）TCXOS:50PPB的超緊密頻率穩定性和寬工作溫度范圍

Jauch Quartz推出一系列新的精密溫度補償晶體振蕩器（TCXO）和電壓控制選項（VCTCXO）壓控溫補振蕩器。這些新器件的頻率穩定度高達十億分之50（ppb），工作溫度范圍為-40至+105℃，令人印象深刻。這些產品提供三種標準表貼封裝:7.0x5.0、5.0x3.2和3.2x2.5mm貼片晶振。

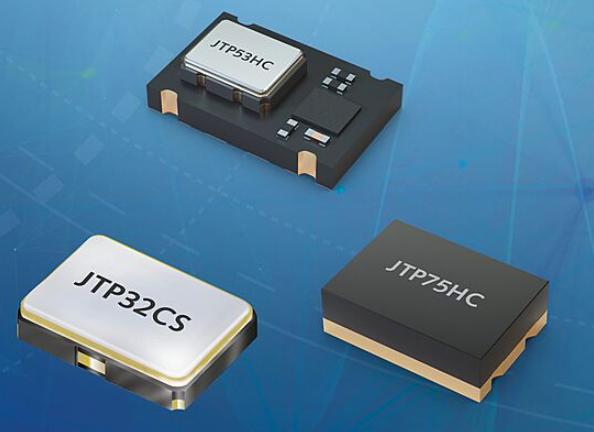

JTP75HC（V）和JTP53HC（V）有源晶振具有HCMOS輸出，電源電壓為3.3V，最大功耗為10 mA。JTP32CS（V）具有削波正弦波輸出，電壓范圍為1.8至3.3V，最大功耗為3mA。

開發了廣泛的頻率范圍，包括：10.00MHz、19.20MHz、20.00MHz、25.00MHz、38.88MHz、40.00MHz和50.00MHz。

未來五到十年5G應用的快速增長將意味著需要能夠在更寬的工作溫度范圍內工作的更高穩定性頻率產品。Jauch的新系列精密（VC）TCXO是新產品在這些市場中為客戶提供支持的第一步。

5G的運行功耗比4G低，這意味著它需要一個大規模輸入大規模輸出（MIMO）系統，這反過來將需要遍布城市、市區以及家庭、辦公室和工廠的數百萬個小蜂窩。微微和毫微微小蜂窩將成為關鍵物聯網和工業自動化的關鍵，這些領域需要小于1毫秒的低延遲和99.9%的高可靠性。預計到2025年，物聯網連接數將達到50億。隨著越來越多的辦公室和家庭通過光纖連接到家庭/辦公室（FTTH/辦公室），正光網絡（PON）市場也將增長。

這些新型精密（VC）TCXO石英晶振非常適合與5G、關鍵物聯網（IoT）、工業自動化、小型蜂窩和GNSS/GPS相關的應用。

所有這些以及許多其他關鍵應用都需要Precision或Stratum 3（VC）TCXO。對于Stratum 3版本，請參考JTP75HC（V）、JTP53HC（V）和JTP32CS（V）。

Jauch新型精密O 10.0-JTP53HCV-F-K-3.3-1515-08X0-LF非常適合GNSS/GPS應用

NEW PRECISION (VC)TCXOS: ULTRA-TIGHT FREQUENCY STABILITY OF ±50 PPB AND WIDE OPERATING TEMPERATURE RANGE

A new range of Precision Temperature Compensated Crystal Oscillators (TCXOs) and the Voltage Controlled option (VCTCXO) will be launched by Jauch Quartz at electronica 2022. The new components impress with their tight frequency stability of ±50 parts per billion (ppb) and wide operating temperature range of -40 to +105°C. The products are available in three standard surface mount packages, 7.0 x 5.0, 5.0 x 3.2 and 3.2 x 2.5 mm.

The JTP75HC(V) and JTP53HC(V) have an HCMOS output with a 3.3 V current supply and a maximum current consumption of 10 mA. The JTP32CS(V) has a Clipped Sinewave Output and is available in a range of voltages from 1.8 to 3.3 V and a maximum current consumption of 3 mA.

A wide range of frequencies are developed including 10.00 MHz, 19.20 MHz, 20.00 MHz, 25.00 MHz, 38.88 MHz, 40.00 MHz & 50.00 MHz.

The rapid growth of 5G applications over the next five to ten years will mean that tighter stability frequency products which can operate over wider operating temperature ranges will be required. Jauch’s new range of Precision (VC)TCXOs are the first step in new products to support our customers in these markets.

5G is run on a lower power than 4G which means that it requires a Massive In Massive Out (MIMO) system which in turn will require many millions of small cells throughout cities, urban areas and within homes, offices and factories. The Pico & Femto small cells will be the key to Critical IoT and Industrial Automation where a low latency of less than 1ms and high reliability of 99.9% is required. By 2025 the estimate is that there will be 5 Billion IoT connections. There will also be a growth in the Positive Optical Network (PON) market as many more offices homes are connected by Fibre to the Home/Office (FTTH/O).

These new Precision (VC)TCXOs are ideal for applications involved with 5G, Critical Internet of Things (IoT), Industrial Automation, Small Cells and GNSS/GPS.

All of these and many other critical applications will require Precision or Stratum 3 (VC)TCXOs. For Stratum 3 versions please refer to JTS75HC(V), JTS53HC(V) & JTS32CS(V).

晶振編碼	晶振廠家	系列	頻率
Q 20.0-JXS32-12-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	20MHz
Q 20.0-JXS32-8-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	20MHz
Q 20.0-JXS32-9-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	20MHz
Q 24.0-JXS32-10-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	24MHz
Q 24.0-JXS32-12-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	24MHz
Q 24.0-JXS32-8-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	24MHz
Q 24.0-JXS32-9-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	24MHz
Q 26.0-JXS32-10-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	26MHz
Q 26.0-JXS32-12-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	26MHz
Q 26.0-JXS32-8-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	26MHz
Q 26.0-JXS32-9-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	26MHz
Q 27.12-JXS32-10-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	27.12MHz
Q 27.12-JXS32-12-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	27.12MHz
Q 27.12-JXS32-8-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	27.12MHz
Q 27.12-JXS32-9-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	27.12MHz
Q 16.0-JXS32-10-10/10-WA-LF	Jauch晶振	JXS32-WA	16MHz
Q 16.0-JXS32-12-10/10-WA-LF	Jauch晶振	JXS32-WA	16MHz
Q 16.0-JXS32-8-10/10-WA-LF	Jauch晶振	JXS32-WA	16MHz
Q 16.0-JXS32-9-10/10-WA-LF	Jauch晶振	JXS32-WA	16MHz
Q 38.4-JXS32-10-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	38.4MHz
Q 38.4-JXS32-12-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	38.4MHz
Q 38.4-JXS32-8-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	38.4MHz
Q 38.4-JXS32-9-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	38.4MHz
Q 32.0-JXS32-10-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	32MHz
Q 32.0-JXS32-12-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	32MHz
Q 32.0-JXS32-8-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	32MHz
Q 32.0-JXS32-9-10/10-FU-WA-LF	Jauch晶振	JXS32-WA	32MHz
