首頁進口晶振泰藝晶振XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

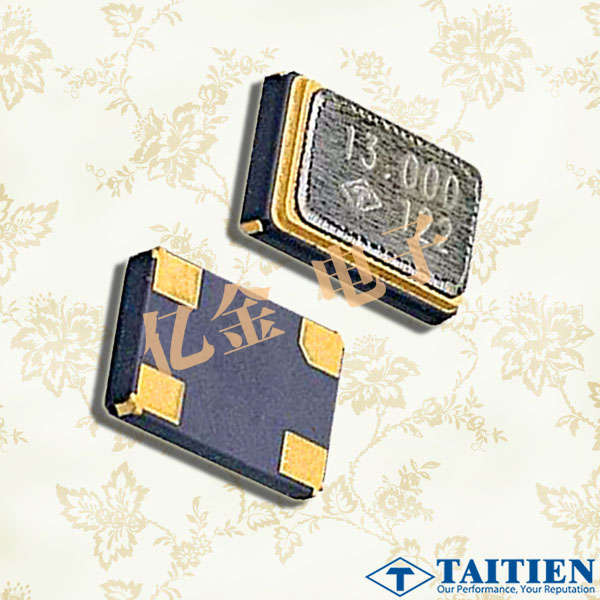

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

頻率：8MHz
尺寸：5032mm
應　用： XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN,臺灣進口石英晶振,典型的5.0x3.2x0.8mm陶瓷SMD封裝。-12mm寬的膠帶和卷軸包裝，用于自動組裝。-緊密公差10ppm可用，藍牙、GPS顯示器、電視（FPD/FTFLCD），計算...

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN,臺灣進口石英晶振,典型的5.0 x 3.2 x 0.8 mm陶瓷SMD封裝。- 12 mm寬的膠帶和卷軸包裝，用于自動組裝。-緊密公差10 ppm可用，藍牙、GPS顯示器、電視（FPD/FTF LCD），計算機外圍設備

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

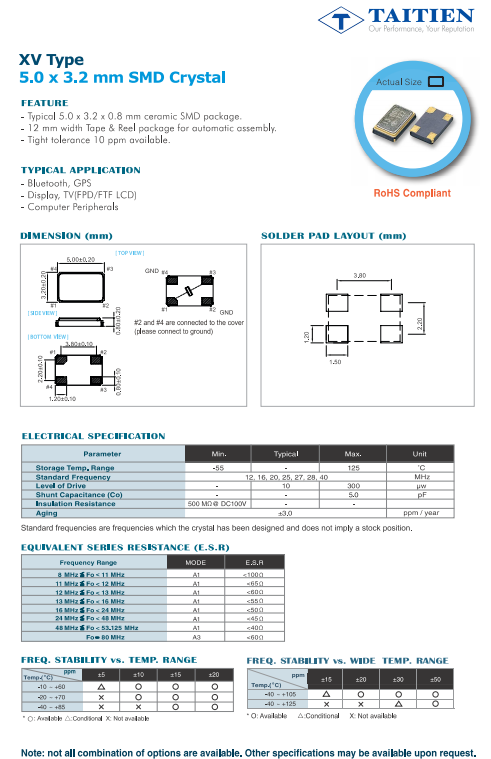

參數	最小值	典型的	最大值	單位
工作溫度	--55	-	125	℃
頻率	12, 16, 20, 25, 27, 28, 40			MHz
驅動電平	-	10	300	µw
負載電荷	-	-	5.0	pF
絕緣電阻	500 M?@ DC100V	-	-
老化	±3.0			ppm / year

XVHCELNANF-8.000000-8MHz-30PPM-5032--40~85℃-TAITIEN

TAITIEN原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZAEECNANF-48.000000	Taitien	XZ	48MHz	±30ppm	±30ppm	8pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-26.000000	Taitien	XZ	26MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.000000	Taitien	XZ	27MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-27.120000	Taitien	XZ	27.12MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-30.000000	Taitien	XZ	30MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-32.000000	Taitien	XZ	32MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-38.400000	Taitien	XZ	38.4MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
XZLEECNANF-40.000000	Taitien	XZ	40MHz	±30ppm	±30ppm	6pF
