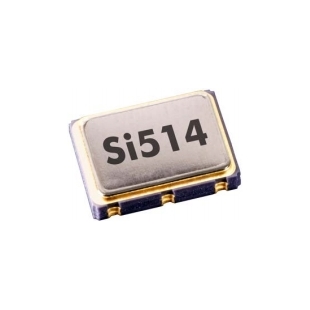

Skyworks振蕩器,514BCC001696BAG,6G數據通訊晶振
- 頻率：84MHz
- 尺寸：5.0×3.2mm
- 應 用： Skyworks振蕩器,歐美進口晶振,Si514有源晶振,石英貼片晶振,LVDS差分晶振,514BCC001696BAG晶振,5032mm晶振,頻率84MHz,電壓3.3V,工作溫度-40~85°C,低抖動晶振,低老化晶振,6G數據通訊晶振,超薄設備物聯網晶振,電信交換機...
-
-
Skyworks振蕩器,514BCC001696BAG,6G數據通訊晶振,Skyworks振蕩器,歐美進口晶振,Si514有源晶振,石英貼片晶振,LVDS差分晶振,514BCC001696BAG晶振,5032mm晶振,頻率84MHz,電壓3.3V,工作溫度-40~85°C,低抖動晶振,低老化晶振,6G數據通訊晶振,超薄設備物聯網晶振,電信交換機晶振,微處理器時鐘晶振.
Skyworks振蕩器,514BCC001696BAG,6G數據通訊晶振特點：
•可編程到從100 kHz到250 MHz的任何頻率
•0.026 PPB頻率調諧分辨率
•對OE、上電、頻率轉換等故障進行抑制
•低抖動操作
•2- 4周的交貨期
•總穩定性包括10年老化
•綜合生產測試覆蓋范圍包括晶體ESR和 DLD
•用于電源噪聲濾波的片上LDO
•3.3、2.5或1.8 V操作
•差分(LVPECL, LVDS，HCSL)或CMOS輸出選項
•可選集成1:2 CMOS扇出緩沖器
•行業標準5x7，3.2x5，2.5x3.2 mm封裝
•工作溫度-40至85℃
Skyworks振蕩器,514BCC001696BAG,6G數據通訊晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 84MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±20 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 23mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOC | 1.33V Max |
LVDS
|
| VO | 0.45Vpp Max | ||
| 輸入電壓 | VIH | 80%VDD Min |
|
| VIL | 20%VDD Max | ||
| 上升下降時間 | tr/tf | 800ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.5ps Max |
Differential Formats
|
.jpg)
Skyworks振蕩器,514BCC001696BAG,6G數據通訊晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 514BBC000932BAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514FAA000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 514BBC000932AAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BCA001826BAG | Skyworks Solutions Inc. | Si514 | 216.96 MHz | LVDS | 3.3V | ±20ppm |
| 514JAA000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514BBA001207AAG | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±25ppm |
| 514BCA000112AAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514ACC000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCC001696BAGR | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC001696BAGR | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000163BAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±50ppm |
| 514ACC000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCC001696BAG | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC001696BAG | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000163BAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±50ppm |
| 514ABB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB001662BAGR | Skyworks Solutions Inc. | Si514 | 148.35164 MHz | LVDS | 3.3V | ±25ppm |
| 514ABB000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB001662BAG | Skyworks Solutions Inc. | Si514 | 148.35164 MHz | LVDS | 3.3V | ±25ppm |
| 514ABA000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000110BAGR | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000126BAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 2.5V | ±25ppm |
| 514ACA001763BAGR | Skyworks Solutions Inc. | Si514 | 9.8304 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCA001204BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000126BAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536BAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001690BAGR | Skyworks Solutions Inc. | Si514 | 161.1328 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001794BAGR | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002153BAGR | Skyworks Solutions Inc. | Si514 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001992CAGR | Skyworks Solutions Inc. | Si514 | 12.8 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000144BAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000348CAGR | Skyworks Solutions Inc. | Si514 | 16.384 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002231BAGR | Skyworks Solutions Inc. | Si514 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 514BBC000163AAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001605AAGR | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000932BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001794BAGR | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±25ppm |
| 514EBC000157BAGR | Skyworks Solutions Inc. | Si514 | 50 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBC000215BAGR | Skyworks Solutions Inc. | Si514 | 27 MHz | LVDS | 2.5V | ±25ppm |
| 514BBC000932CAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BCB000106AAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001535AAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 514ABA000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000110BAG | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000126BAG | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 2.5V | ±25ppm |
| 514BCC001698AAGR | Skyworks Solutions Inc. | Si514 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC000790AAGR | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCC001536AAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514BBC000163AAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001605AAG | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±25ppm |
| 514BAA000950AAGR | Skyworks Solutions Inc. | Si514 | 88 MHz | LVDS | 3.3V | ±50ppm |
| 514EAA001009AAGR | Skyworks Solutions Inc. | Si514 | 8 MHz | LVPECL | 2.5V | ±50ppm |
| 514BAC000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001794BAG | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000144BAG | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002153BAG | Skyworks Solutions Inc. | Si514 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001992CAG | Skyworks Solutions Inc. | Si514 | 12.8 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002231BAG | Skyworks Solutions Inc. | Si514 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000348CAG | Skyworks Solutions Inc. | Si514 | 16.384 MHz | LVDS | 3.3V | ±50ppm |
| 514AAB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 514ACC000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 514BAB001049BAGR | Skyworks Solutions Inc. | Si514 | 148.426 MHz | LVDS | 3.3V | ±50ppm |
| 514BCC000107BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000144BAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000163BAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000932BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC001289BAGR | Skyworks Solutions Inc. | Si514 | 114.544 MHz | LVDS | 3.3V | ±20ppm |
| 514DCC000798BAGR | Skyworks Solutions Inc. | Si514 | 1 MHz | HCSL | 3.3V | ±20ppm |
| 514JAB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514JAB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±50ppm |
| 514ACA001763BAG | Skyworks Solutions Inc. | Si514 | 9.8304 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCA001204BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000126BAG | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536BAG | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001690BAG | Skyworks Solutions Inc. | Si514 | 161.1328 MHz | LVDS | 1.8V | ±20ppm |
| 514BAB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 514JAB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±50ppm |
| 514JCC002362BAGR | Skyworks Solutions Inc. | Si514 | 94 MHz | LVDS | 1.8V | ±20ppm |
| 514FCC000111CAGR | Skyworks Solutions Inc. | Si514 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 514ACC000773CAGR | Skyworks Solutions Inc. | Si514 | 98.304 MHz | LVPECL | 3.3V | ±20ppm |
| 514JAB000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 1.8V | ±50ppm |
| 514AAB000118CAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514BCA000383BAG | Skyworks Solutions Inc. | Si514 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 514BCA000383BAGR | Skyworks Solutions Inc. | Si514 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 514FBB001663BAG | Skyworks Solutions Inc. | Si514 | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| 514FBB001663BAGR | Skyworks Solutions Inc. | Si514 | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| 514JCA001703AAG | Skyworks Solutions Inc. | Si514 | 148.35165 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001703AAGR | Skyworks Solutions Inc. | Si514 | 148.35165 MHz | LVDS | 1.8V | ±20ppm |
| 514ABA000144AAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVPECL | 3.3V | ±25ppm |
| 514ABA001695AAGR | Skyworks Solutions Inc. | Si514 | 125 kHz | LVPECL | 3.3V | ±25ppm |
| 514ABA001741AAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000159AAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000112AAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 2.5V | ±25ppm |
| 514FBA000950AAGR | Skyworks Solutions Inc. | Si514 | 88 MHz | LVDS | 2.5V | ±25ppm |
| 514JBA000121AAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±25ppm |
| 514JBA000159AAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514BCC001698AAG | Skyworks Solutions Inc. | Si514 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC000790AAG | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCC001536AAG | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514ABB000136BAGR | Skyworks Solutions Inc. | Si514 | 160 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000744BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB001011BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514EBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 2.5V | ±25ppm |
| 514FBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 2.5V | ±25ppm |
| 514JBB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000586BAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB001011BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514BBB002312CAGR | Skyworks Solutions Inc. | Si514 | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| 514FBB000115CAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 514BBB000115CAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB002216BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001794BAG | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±25ppm |
| 514EBC000157BAG | Skyworks Solutions Inc. | Si514 | 50 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBC000215BAG | Skyworks Solutions Inc. | Si514 | 27 MHz | LVDS | 2.5V | ±25ppm |
| 514BBC000932CAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514AAB000159BAG | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 514ACC000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 514BAB001049BAG | Skyworks Solutions Inc. | Si514 | 148.426 MHz | LVDS | 3.3V | ±50ppm |
| 514BCC000107BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000144BAG | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000163BAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000932BAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC001289BAG | Skyworks Solutions Inc. | Si514 | 114.544 MHz | LVDS | 3.3V | ±20ppm |
| 514DCC000798BAG | Skyworks Solutions Inc. | Si514 | 1 MHz | HCSL | 3.3V | ±20ppm |
| 514JAB000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514JAB000482BAG | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±50ppm |
| 514BAB000159BAG | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 514JCC002362BAG | Skyworks Solutions Inc. | Si514 | 94 MHz | LVDS | 1.8V | ±20ppm |
| 514JAB000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 1.8V | ±50ppm |
| 514ACC000773CAG | Skyworks Solutions Inc. | Si514 | 98.304 MHz | LVPECL | 3.3V | ±20ppm |
| 514JAB000121BAG | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±50ppm |
| 514FCC000111CAG | Skyworks Solutions Inc. | Si514 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 514AAB000118CAG | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514BCA000126AAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000790AAGR | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536AAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514BBB002312CAG | Skyworks Solutions Inc. | Si514 | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000115CAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±25ppm |
| 514FBB000115CAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 514BBB002216BAG | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514AAA000110BAGR | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514AAA000776BAGR | Skyworks Solutions Inc. | Si514 | 100 kHz | LVPECL | 3.3V | ±50ppm |
| 514BAA000643BAGR | Skyworks Solutions Inc. | Si514 | 212.5 MHz | LVDS | 3.3V | ±50ppm |
| 514BCB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001605BAGR | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001741BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001853BAGR | Skyworks Solutions Inc. | Si514 | 55 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001855BAGR | Skyworks Solutions Inc. | Si514 | 235.4 kHz | LVDS | 3.3V | ±20ppm |
| 514BCB001856BAGR | Skyworks Solutions Inc. | Si514 | 23.54 MHz | LVDS | 3.3V | ±20ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://m.lbfp.com.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
