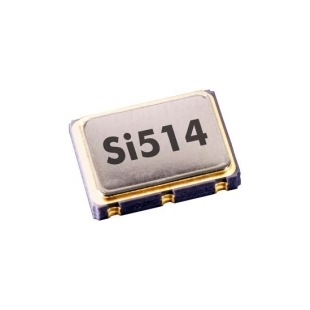

Skyworks差分晶振,514BAC000163BAG,6G信號接收器晶振
- 頻率：20MHz
- 尺寸：5.0×3.2mm
- 應 用： Skyworks差分晶振,Si514有源晶振,514BAC000163BAG晶振,SMD晶體,Si514可在工廠配置,適用于各種用戶規格,包括啟動頻率,I2C地址,電源電壓,輸出格式和穩定性,LVDS晶振,5032mm晶振,6G信號接收器晶振,工業自動化應用晶振,FP...
-
-
Skyworks差分晶振,514BAC000163BAG,6G信號接收器晶振,Skyworks差分晶振,Si514有源晶振,514BAC000163BAG晶振,SMD晶體,Si514可在工廠配置,適用于各種用戶規格,包括啟動頻率,I2C地址,電源電壓,輸出格式和穩定性,具體的配置在出廠時已在工廠編程,消除了長時間的交貨與自定義頻率相關的時間和非經常性工程費用振蕩器,LVDS晶振,5032mm晶振,6G信號接收器晶振,工業自動化應用晶振,FPGA/ASIC時鐘生成晶振,FPGA同步晶振.

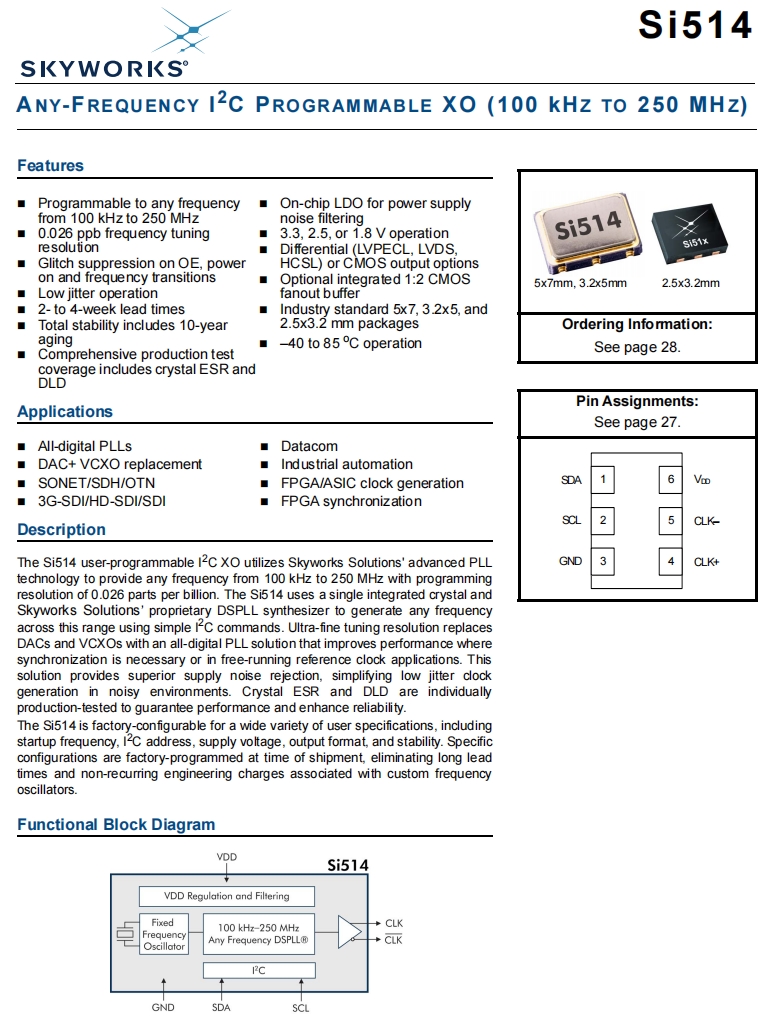

Skyworks差分晶振,514BAC000163BAG,6G信號接收器晶振特點：
•可編程到從100 kHz到250 MHz的任何頻率
•0.026 PPB頻率調諧分辨率
•對OE、上電、頻率轉換等故障進行抑制
•低抖動操作
•2- 4周的交貨期
•總穩定性包括10年老化
•綜合生產測試覆蓋范圍包括晶體ESR和 DLD
•用于電源噪聲濾波的片上LDO
•3.3、2.5或1.8 V操作
•差分(LVPECL, LVDS，HCSL)或CMOS輸出選項
•可選集成1:2 CMOS扇出緩沖器
•行業標準5x7，3.2x5，2.5x3.2 mm封裝
•工作溫度-40至85℃
Skyworks差分晶振,514BAC000163BAG,6G信號接收器晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 20MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±50 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 23mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOC | 1.33V Max |
LVDS
|
| VO | 0.45Vpp Max | ||
| 輸入電壓 | VIH | 80%VDD Min |
|
| VIL | 20%VDD Max | ||
| 上升下降時間 | tr/tf | 800ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.5ps Max |
Differential Formats
|
.jpg)

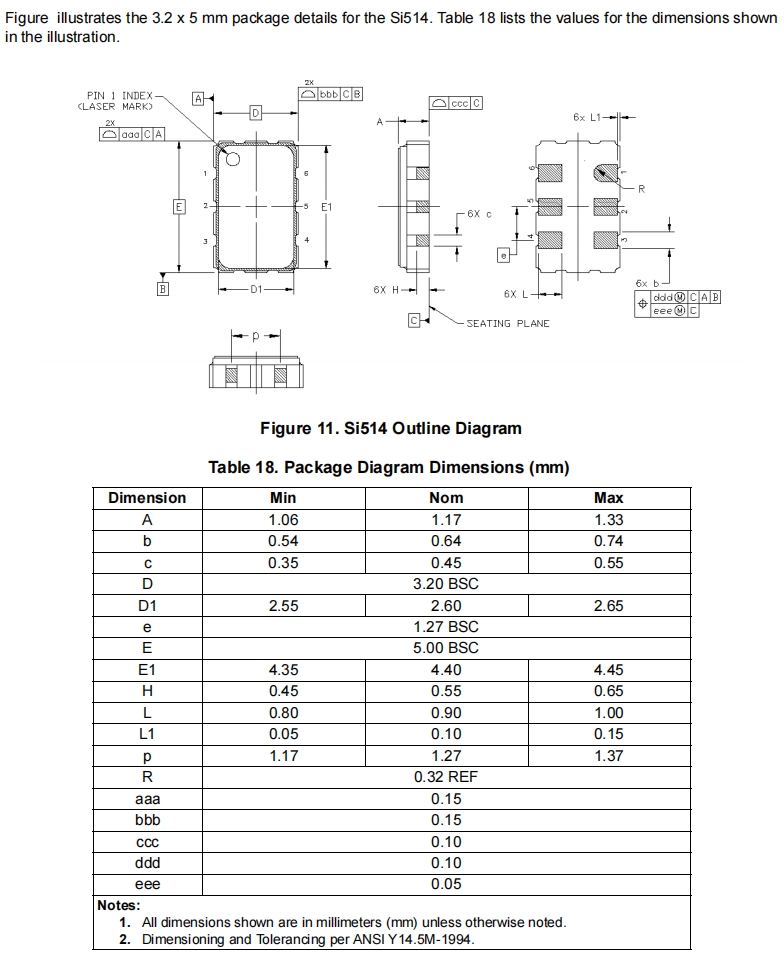

Skyworks差分晶振,514BAC000163BAG,6G信號接收器晶振尺寸圖

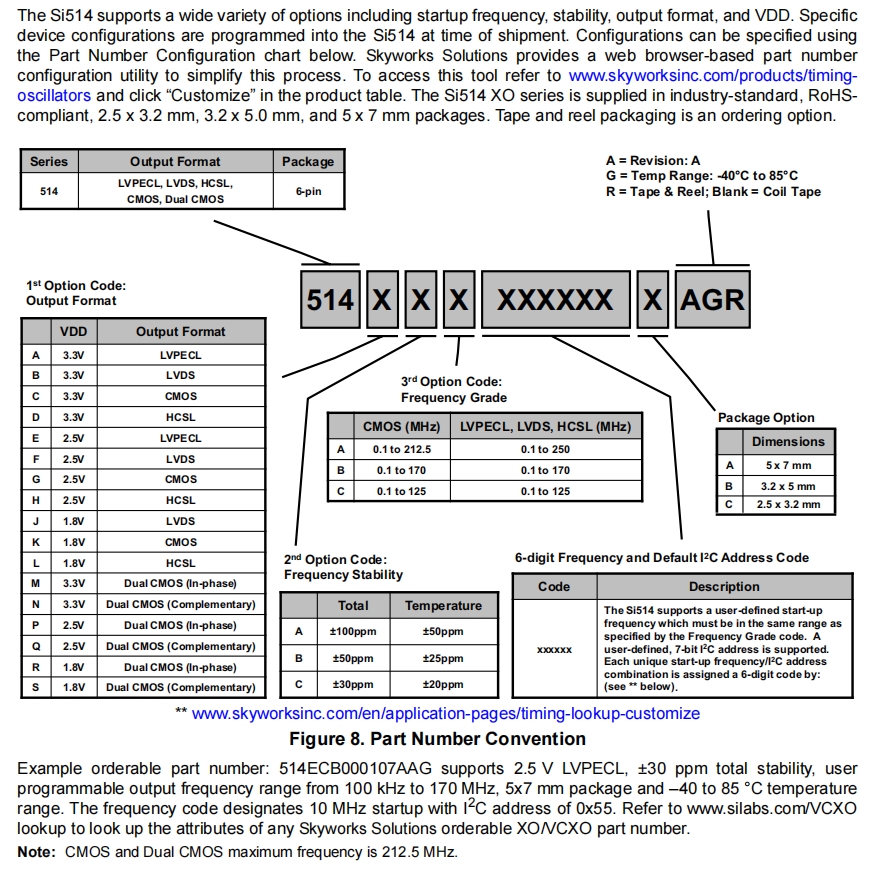

| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 |
| 514BBC000932BAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514FAA000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 514BBC000932AAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BCA001826BAG | Skyworks Solutions Inc. | Si514 | 216.96 MHz | LVDS | 3.3V | ±20ppm |
| 514JAA000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514BBA001207AAG | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±25ppm |
| 514BCA000112AAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514ACC000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCC001696BAGR | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC001696BAGR | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000163BAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±50ppm |
| 514ACC000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCC001696BAG | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC001696BAG | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000163BAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±50ppm |
| 514ABB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB001662BAGR | Skyworks Solutions Inc. | Si514 | 148.35164 MHz | LVDS | 3.3V | ±25ppm |
| 514ABB000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB001662BAG | Skyworks Solutions Inc. | Si514 | 148.35164 MHz | LVDS | 3.3V | ±25ppm |
| 514ABA000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000110BAGR | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000126BAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 2.5V | ±25ppm |
| 514ACA001763BAGR | Skyworks Solutions Inc. | Si514 | 9.8304 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCA001204BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000126BAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536BAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001690BAGR | Skyworks Solutions Inc. | Si514 | 161.1328 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001794BAGR | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002153BAGR | Skyworks Solutions Inc. | Si514 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001992CAGR | Skyworks Solutions Inc. | Si514 | 12.8 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000144BAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000348CAGR | Skyworks Solutions Inc. | Si514 | 16.384 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002231BAGR | Skyworks Solutions Inc. | Si514 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 514BBC000163AAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001605AAGR | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000932BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001794BAGR | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±25ppm |
| 514EBC000157BAGR | Skyworks Solutions Inc. | Si514 | 50 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBC000215BAGR | Skyworks Solutions Inc. | Si514 | 27 MHz | LVDS | 2.5V | ±25ppm |
| 514BBC000932CAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BCB000106AAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001535AAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 514ABA000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000110BAG | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000126BAG | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 2.5V | ±25ppm |
| 514BCC001698AAGR | Skyworks Solutions Inc. | Si514 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC000790AAGR | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCC001536AAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514BBC000163AAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001605AAG | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±25ppm |
| 514BAA000950AAGR | Skyworks Solutions Inc. | Si514 | 88 MHz | LVDS | 3.3V | ±50ppm |
| 514EAA001009AAGR | Skyworks Solutions Inc. | Si514 | 8 MHz | LVPECL | 2.5V | ±50ppm |
| 514BAC000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001794BAG | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000144BAG | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002153BAG | Skyworks Solutions Inc. | Si514 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001992CAG | Skyworks Solutions Inc. | Si514 | 12.8 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002231BAG | Skyworks Solutions Inc. | Si514 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000348CAG | Skyworks Solutions Inc. | Si514 | 16.384 MHz | LVDS | 3.3V | ±50ppm |
| 514AAB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 514ACC000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 514BAB001049BAGR | Skyworks Solutions Inc. | Si514 | 148.426 MHz | LVDS | 3.3V | ±50ppm |
| 514BCC000107BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000144BAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000163BAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000932BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC001289BAGR | Skyworks Solutions Inc. | Si514 | 114.544 MHz | LVDS | 3.3V | ±20ppm |
| 514DCC000798BAGR | Skyworks Solutions Inc. | Si514 | 1 MHz | HCSL | 3.3V | ±20ppm |
| 514JAB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514JAB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±50ppm |
| 514ACA001763BAG | Skyworks Solutions Inc. | Si514 | 9.8304 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCA001204BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000126BAG | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536BAG | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001690BAG | Skyworks Solutions Inc. | Si514 | 161.1328 MHz | LVDS | 1.8V | ±20ppm |
| 514BAB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 514JAB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±50ppm |
| 514JCC002362BAGR | Skyworks Solutions Inc. | Si514 | 94 MHz | LVDS | 1.8V | ±20ppm |
| 514FCC000111CAGR | Skyworks Solutions Inc. | Si514 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 514ACC000773CAGR | Skyworks Solutions Inc. | Si514 | 98.304 MHz | LVPECL | 3.3V | ±20ppm |
| 514JAB000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 1.8V | ±50ppm |
| 514AAB000118CAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514BCA000383BAG | Skyworks Solutions Inc. | Si514 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 514BCA000383BAGR | Skyworks Solutions Inc. | Si514 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 514FBB001663BAG | Skyworks Solutions Inc. | Si514 | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| 514FBB001663BAGR | Skyworks Solutions Inc. | Si514 | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| 514JCA001703AAG | Skyworks Solutions Inc. | Si514 | 148.35165 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001703AAGR | Skyworks Solutions Inc. | Si514 | 148.35165 MHz | LVDS | 1.8V | ±20ppm |
| 514ABA000144AAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVPECL | 3.3V | ±25ppm |
| 514ABA001695AAGR | Skyworks Solutions Inc. | Si514 | 125 kHz | LVPECL | 3.3V | ±25ppm |
| 514ABA001741AAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000159AAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000112AAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 2.5V | ±25ppm |
| 514FBA000950AAGR | Skyworks Solutions Inc. | Si514 | 88 MHz | LVDS | 2.5V | ±25ppm |
| 514JBA000121AAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±25ppm |
| 514JBA000159AAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514BCC001698AAG | Skyworks Solutions Inc. | Si514 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC000790AAG | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCC001536AAG | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514ABB000136BAGR | Skyworks Solutions Inc. | Si514 | 160 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000744BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB001011BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514EBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 2.5V | ±25ppm |
| 514FBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 2.5V | ±25ppm |
| 514JBB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000586BAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB001011BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514BBB002312CAGR | Skyworks Solutions Inc. | Si514 | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| 514FBB000115CAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 514BBB000115CAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB002216BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001794BAG | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±25ppm |
| 514EBC000157BAG | Skyworks Solutions Inc. | Si514 | 50 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBC000215BAG | Skyworks Solutions Inc. | Si514 | 27 MHz | LVDS | 2.5V | ±25ppm |
| 514BBC000932CAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514AAB000159BAG | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 514ACC000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 514BAB001049BAG | Skyworks Solutions Inc. | Si514 | 148.426 MHz | LVDS | 3.3V | ±50ppm |
| 514BCC000107BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000144BAG | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000163BAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000932BAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC001289BAG | Skyworks Solutions Inc. | Si514 | 114.544 MHz | LVDS | 3.3V | ±20ppm |
| 514DCC000798BAG | Skyworks Solutions Inc. | Si514 | 1 MHz | HCSL | 3.3V | ±20ppm |
| 514JAB000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514JAB000482BAG | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±50ppm |
| 514BAB000159BAG | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 514JCC002362BAG | Skyworks Solutions Inc. | Si514 | 94 MHz | LVDS | 1.8V | ±20ppm |
| 514JAB000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 1.8V | ±50ppm |
| 514ACC000773CAG | Skyworks Solutions Inc. | Si514 | 98.304 MHz | LVPECL | 3.3V | ±20ppm |
| 514JAB000121BAG | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±50ppm |
| 514FCC000111CAG | Skyworks Solutions Inc. | Si514 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 514AAB000118CAG | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514BCA000126AAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000790AAGR | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536AAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514BBB002312CAG | Skyworks Solutions Inc. | Si514 | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000115CAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±25ppm |
| 514FBB000115CAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 514BBB002216BAG | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514AAA000110BAGR | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514AAA000776BAGR | Skyworks Solutions Inc. | Si514 | 100 kHz | LVPECL | 3.3V | ±50ppm |
| 514BAA000643BAGR | Skyworks Solutions Inc. | Si514 | 212.5 MHz | LVDS | 3.3V | ±50ppm |
| 514BCB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001605BAGR | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001741BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001853BAGR | Skyworks Solutions Inc. | Si514 | 55 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001855BAGR | Skyworks Solutions Inc. | Si514 | 235.4 kHz | LVDS | 3.3V | ±20ppm |
| 514BCB001856BAGR | Skyworks Solutions Inc. | Si514 | 23.54 MHz | LVDS | 3.3V | ±20ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：[email protected]
網站：http://m.lbfp.com.cn
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
