首頁歐美晶振拉隆晶振AS-13.560-20-SMD-TR|HC-49S貼片|6G室內路由器晶振

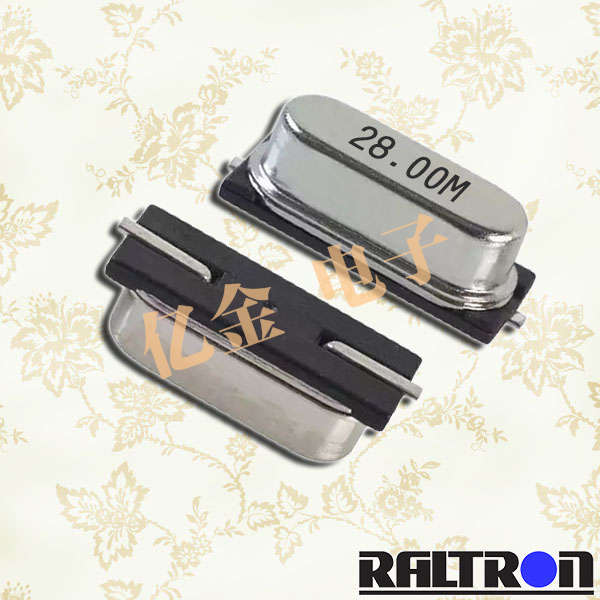

AS-13.560-20-SMD-TR|HC-49S貼片|6G室內路由器晶振

頻率：13.56MHz
尺寸：12.0×4.8mm
應　用： 美國拉隆晶振,AS-SMD無源晶振,AS-13.560-20-SMD-TR晶振,石英晶體諧振器,進口貼片晶振,頻率13.56MHz,負載20pF,頻率穩定性30ppm,工作溫度-10~70°C,耐高溫晶振,低老化晶振,6G室內路由器晶振,藍牙音響晶振,家用電視機頂盒...

AS-13.560-20-SMD-TR|HC-49S貼片|6G室內路由器晶振,美國拉隆晶振,AS-SMD無源晶振,AS-13.560-20-SMD-TR晶振,石英晶體諧振器,進口貼片晶振,頻率13.56MHz,負載20pF,頻率穩定性30ppm,工作溫度-10~70°C,耐高溫晶振,低老化晶振,6G室內路由器晶振,藍牙音響晶振,家用電視機頂盒晶振,時鐘鐘表晶振.
AS-13.560-20-SMD-TR|HC-49S貼片|6G室內路由器晶振特點：
•卓越的時鐘信號發生器，用于CPU
•可擴展溫度范圍
•低輪廓表面安裝

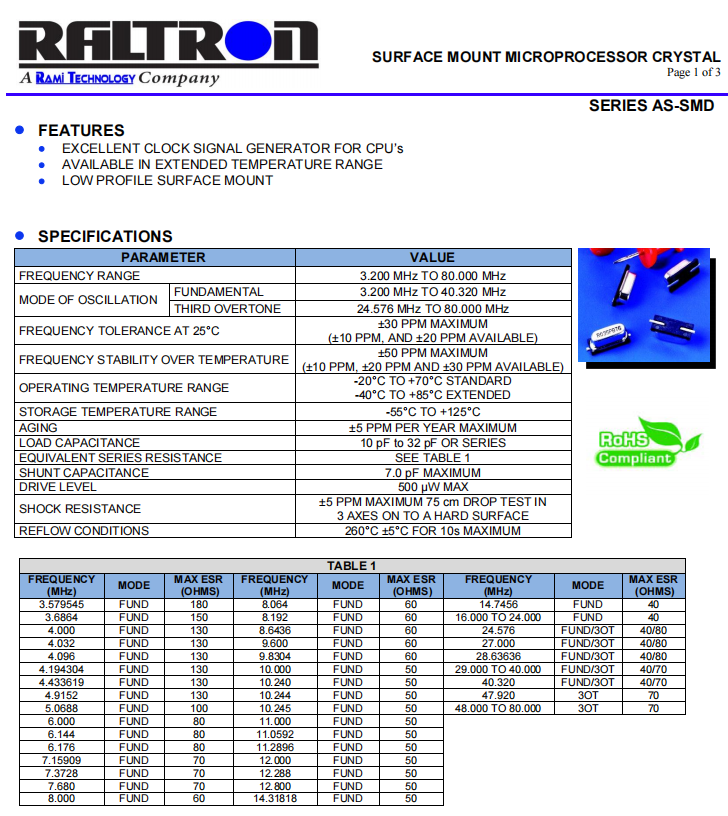

AS-13.560-20-SMD-TR|HC-49S貼片|6G室內路由器晶振規格表

參數	數值
標準頻率	13.56MHz
頻率容差	30ppm
頻率穩定性	50ppm
工作溫度	−10~+70°C
儲存溫度	−55~+125°C
老化	±5ppm
負載	20pF
并聯電容	7pF Max
激勵功率	500 µW MAX
抗震性	±5ppm Max 75 cm DROP TEST IN 3 AXES ON TO A HARD SURFACE
抗震性	±5ppm Max 75 cm DROP TEST IN 3 AXES ON TO A HARD SURFACE
回流焊條件	260°C ±5°C FOR 10s Max

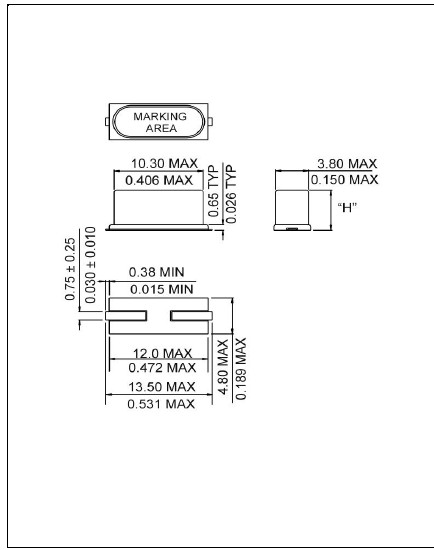

AS-13.560-20-SMD-TR|HC-49S貼片|6G室內路由器晶振尺寸圖

Raltron原廠編碼	型號	頻率	尺寸	頻率偏差	頻率穩定度	負載	工作溫度
AS-4.000-18-SMD-TR	AS-SMD	4.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-4.9152-18-EXT-SMD-TR	AS-SMD	4.9152MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-5.000-18-EXT-SMD-TR	AS-SMD	5.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-6.000-12-2020-EXT-SMD-TR	AS-SMD	6.000MHz	13.50 x 4.80mm	± 20 ppm	± 20 ppm	12 pF	-40°C~+85°C
AS-7.3728-20-EXT-SMD-TR	AS-SMD	7.3728MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-40°C~+85°C
AS-7.3728-18-SMD-TR	AS-SMD	7.3728MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-8.000-20-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-8.000-18-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-8.000-30-3030-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	30 pF	-20°C~+70°C
AS-9.8304-18-SMD-TR	AS-SMD	9.8304MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-10.000-20-3030-SMD-TR	AS-SMD	10.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	20 pF	-20°C~+70°C
AS-11.0592-18-SMD-TR	AS-SMD	11.0592MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-12.000-18-SMD-TR	AS-SMD	12.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-13.560-20-SMD-TR	AS-SMD	13.560MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-10°C~+70°C
AS-14.31818-20-SMD-TR	AS-SMD	14.31818MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-14.7456-20-SMD-TR	AS-SMD	14.7456MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-14.7456-18-EXT-SMD-TR	AS-SMD	14.7456MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-16.000-18-SMD-TR	AS-SMD	16.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-16.000-20-SMD-TR	AS-SMD	16.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-18.432-20-SMD-TR	AS-SMD	18.432MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-18.432-18-SMD-TR	AS-SMD	18.432MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-19.6608-20-SMD-TR	AS-SMD	19.6608MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-10°C~+70°C
AS-20.000-16-SMD-TR	AS-SMD	20.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	16 pF	-20°C~+70°C
AS-20.000-20-SMD-TR	AS-SMD	20.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-24.000-18-SMD-TR	AS-SMD	24.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-24.576-18-F-SMD-TR	AS-SMD	24.576MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-25.000-18-F-SMD-TR	AS-SMD	25.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-26.000-20-F-SMD-TR	AS-SMD	26.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-27.000-20-F-3030-SMD-TR	AS-SMD	27.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	20 pF	-10°C~+60°C
AS-30.000-10-F-2020-EXT-SMD-TR	AS-SMD	30.000MHz	13.50 x 4.80mm	± 20 ppm	± 20 ppm	10 pF	-40°C~+85°C
AS-30.000-10-F-2020-EXT-SMD-TR	AS-SMD	32.000MHz	13.50 x 4.80mm	± 10 ppm	± 20 ppm	10 pF	-20°C~+70°C
AS-40.000-18-F-EXT-SMD-TR	AS-SMD	40.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
