首頁進口晶振百利通亞陶晶振DIODES-FY1020003-10.24M-20PF-30PPM-5032

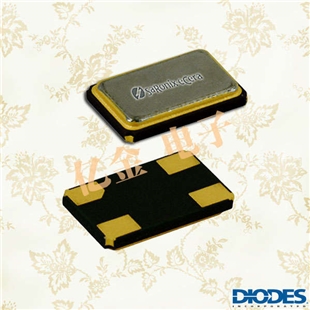

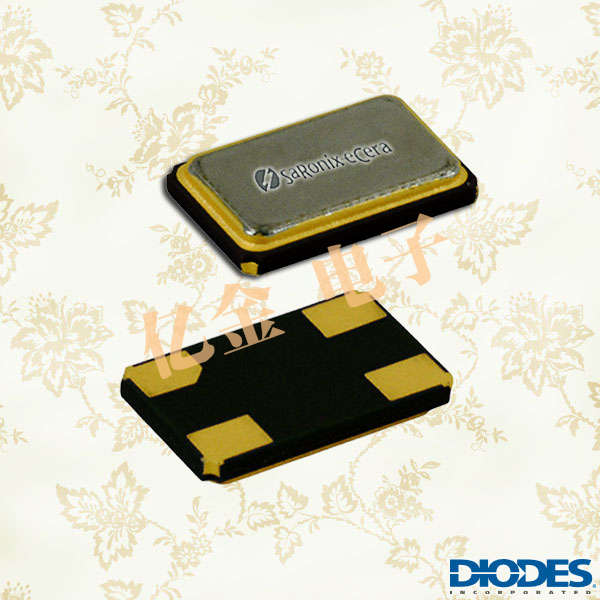

DIODES-FY1020003-10.24M-20PF-30PPM-5032

頻率：10.24MHz
尺寸：5032mm

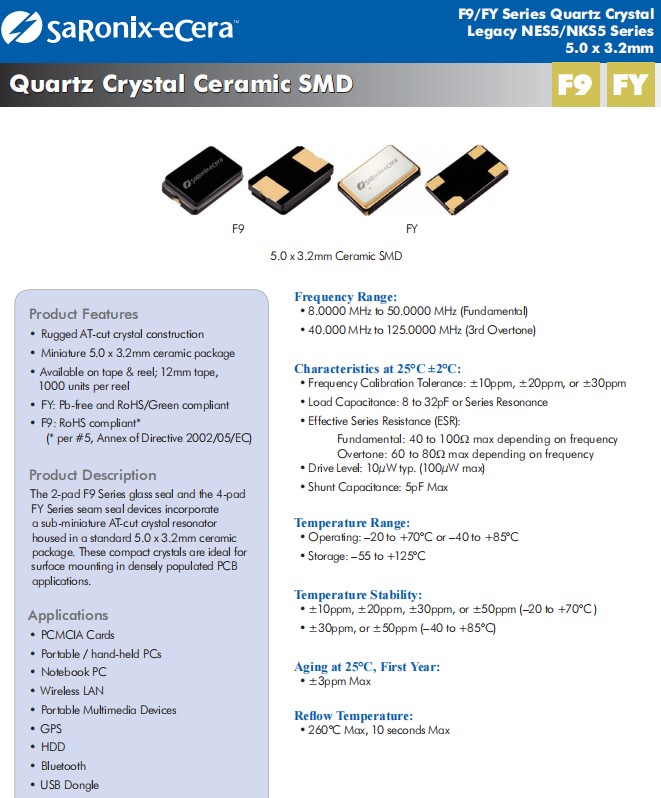

應　用： DIODES-FY1020003-10.24M-20PF-30PPM-5032，臺灣Diodes晶振，堅固的AT-cut晶體結構微型5.0x3.2mm陶瓷包裝，可卷帶12mm膠帶，1000個單位FY：無鉛和RoHS/綠色兼容F9：RoHS兼容*（*根據#5，指令2002/05/EC附件），2墊F9系...

DIODES-FY1020003-10.24M-20PF-30PPM-5032，臺灣Diodes晶振，堅固的AT-cut晶體結構微型5.0 x 3.2mm陶瓷包裝，可卷帶12mm膠帶，1000個單位FY：無鉛和RoHS/綠色兼容F9： RoHS兼容*（*根據#5，指令2002/05/EC附件），2墊F9系列玻璃密封和4墊FY系列接縫密封裝置采用標準的5.0 x 3.2mm封裝封裝。這些協議用于PCB應用中的表面安裝，PCMCIA卡，便攜式/手持式個人電腦，筆記本電腦，無線局域網，便攜式多媒體設備，GPS，硬盤，藍牙，USB適配器

DIODES-FY1020003-10.24M-20PF-30PPM-5032

Parameters

Minimum

Typical

Maximum

Units

頻率

8.000

50.000

MHz

操作模式

Fundamental

工作溫度

- 10

+50

ºC

儲存溫度

--40

+85

ºC

頻率容差 @+25°C

--50

+50

ppm

工作溫度下的頻率穩定性 ( ref. to +25°C)

--50

+50

ppm

并聯電容 (C0)

負載電容 (CL)

8 to 32

驅動電平

100

µW

老化

--5

ppm

DIODES-FY1020003-10.24M-20PF-30PPM-5032

DIODES原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	工作溫度
FY2500117	Diodes晶振	FY	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FY2500117	Diodes晶振	FY	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FY2500117	Diodes晶振	FY	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FY0800018	Diodes晶振	FY	8MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FY0800018	Diodes晶振	FY	8MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FY0800018	Diodes晶振	FY	8MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FY1000009	Diodes晶振	FY	10MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
FY1000009	Diodes晶振	FY	10MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
FY1000009	Diodes晶振	FY	10MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
FY2400053	Diodes晶振	FY	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2400053	Diodes晶振	FY	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2400053	Diodes晶振	FY	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2500016	Diodes晶振	FY	25MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FY2500016	Diodes晶振	FY	25MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FY2500016	Diodes晶振	FY	25MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FY2500068	Diodes晶振	FY	25MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
FY2500068	Diodes晶振	FY	25MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
FY2500068	Diodes晶振	FY	25MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
FY2500115	Diodes晶振	FY	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2500115	Diodes晶振	FY	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2500115	Diodes晶振	FY	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY1000020	Diodes晶振	FY	10MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
FY1000020	Diodes晶振	FY	10MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
FY1000020	Diodes晶振	FY	10MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
FY1200011	Diodes晶振	FY	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY1200011	Diodes晶振	FY	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY1200011	Diodes晶振	FY	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY0800027	Diodes晶振	FY	8MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FY0800027	Diodes晶振	FY	8MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FY0800027	Diodes晶振	FY	8MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
