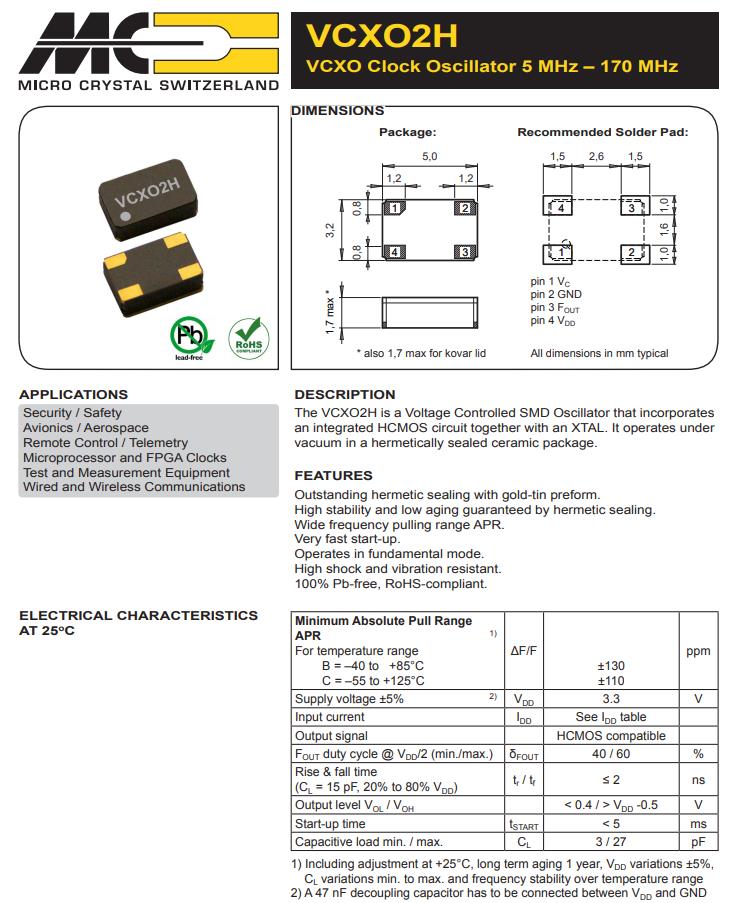

VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator
- 頻率：80MHz
- 尺寸：5.0×3.2mm
- 應 用： 歐美進口晶振,Micro晶振,VCXO2H有源晶振,壓控晶體振蕩器,VCXO2H-V-B-80.000MHz-T3晶振,VCXO時鐘振蕩器,5032mm晶振,四腳貼片晶振,SMD晶體,頻率80MHz,電壓3.3V,工作溫度-40~85°C,頻率容差130ppm,高穩定性晶振,高抗沖擊...
-
-
VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator,歐美進口晶振,Micro晶振,VCXO2H有源晶振,壓控晶體振蕩器,VCXO2H-V-B-80.000MHz-T3晶振,VCXO時鐘振蕩器,5032mm晶振,四腳貼片晶振,SMD晶體,頻率80MHz,電壓3.3V,工作溫度-40~85°C,頻率容差130ppm,高穩定性晶振,高抗沖擊晶振,無鉛環保晶振,微處理器晶振,測試與測量設備晶振,FPGA時鐘晶振,有線通訊晶振.
VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•寬頻率牽引范圍APR
•非常快的啟動
•在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準
VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator規格表
| Standard Frequency | FL | 80 | MHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F | ±130 | ppm |
| Input Current | IDD |
< 10
|
mA |
| Output signal | HCMOS compatible | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 40 / 60 | % |
|
Rise & fall time
(CL = 15 pF, 20% to 80% VDD)
|
tr / tf | ≤ 2 | ns |
|
Output level VOL / VOH
|
|
< 0.4 / > VDD -0.5
|
V |
| Start-up time | tSTART | < 5 | ms |
|
Capacitive load min. / max
|
CL
|
3 / 27
|
pF |
| Storage temperature range | T_stg | −65~+125 | °C |
| Operating temperature range | T_use | −40~+85 | °C |
| Shock resistance | 5000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 20 g / 10–2000 Hz | ||
| Lid |
Ceramic Lid
|
||
| Terminations (Option ) |
SnAgCu solder dipped pads (T3)
|
.jpg)

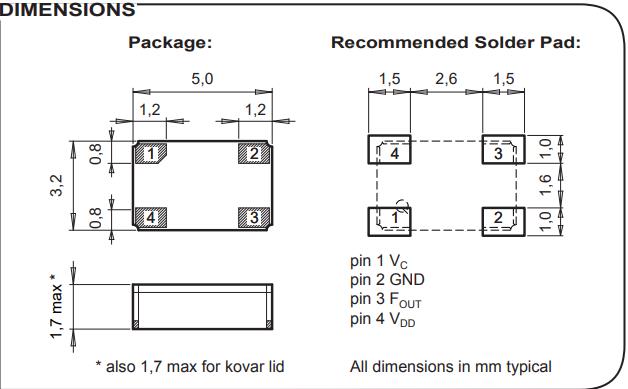

VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator尺寸圖
.jpg)
.jpg)
