首頁歐美晶振微晶晶振OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG

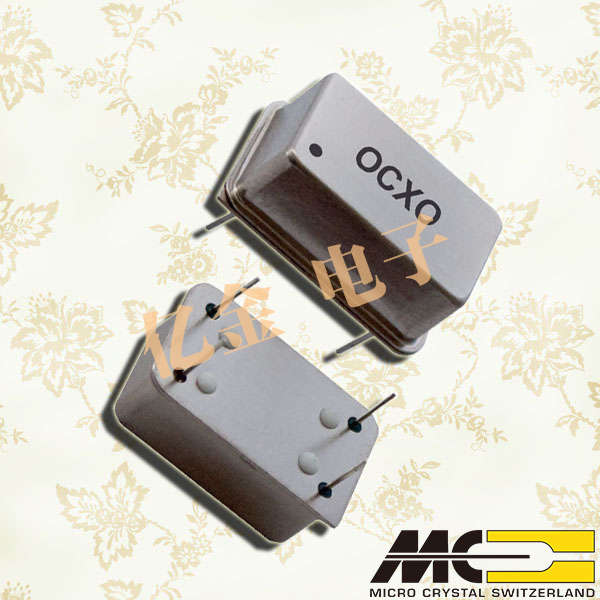

OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG

  • 頻率：52MHz
  • 尺寸：20.2×12.6mm
  • 應　用： 瑞士微晶晶振,OCXO有源晶振,恒溫晶振,OCXO-W-T-C-V3-52.000MHz-D2晶振,石英晶體振蕩器,進口晶振,20.2×12.6mm晶振,四腳插件晶振,頻率52MHz,電壓3.3V,工作溫度-40~85°C,頻率容差0.5ppm,低功耗晶振,高穩定性晶振,低老化...
  • RoHS RoHS2


OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG,瑞士微晶晶振,OCXO有源晶振,恒溫晶振,OCXO-W-T-C-V3-52.000MHz-D2晶振,石英晶體振蕩器,進口晶振,20.2×12.6mm晶振,四腳插件晶振,頻率52MHz,電壓3.3V,工作溫度-40~85°C,頻率容差0.5ppm,低功耗晶振,高穩定性晶振,低老化晶振,數字交換晶振,機載設備晶振,電池控制系統晶振,無線電收發機晶振.
OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG特點：
•高穩定性，低老化
•低功耗
•非常快的熱身
•在基本模式下運行
•高抗沖擊和抗振動
•通過無鉛認證

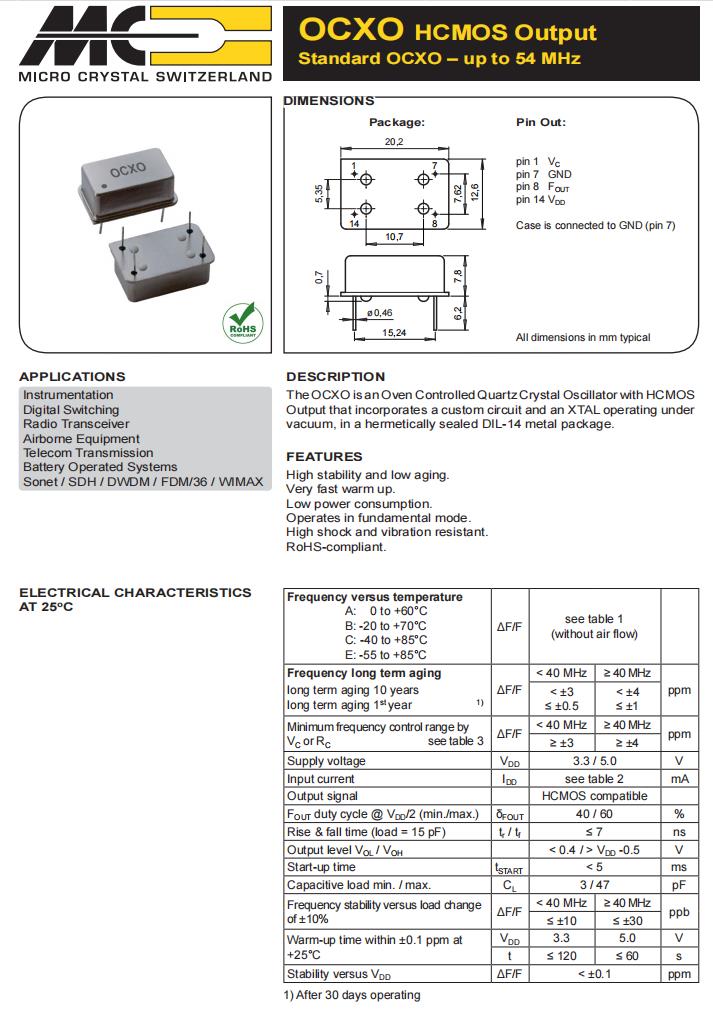

OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG規格表
Standard Frequency FL 52 MHz
Supply voltage ±5% VDD 3.3 V
Frequency tolerance ΔF/F
≤ ±500
 ppb
Input Current IDD
≤ 120 mA
 mA
Output signal   HCMOS  compatible
FOUT duty cycle @ VDD/2 (min./max.) δFOUT 40 / 60 %
Rise & fall time
(CL = 15 pF)
 tr / tf ≤ 7 ns
Output level VOL / VOH

< 0.4 / > VDD -0.5
 V
Start-up time tSTART < 5 ms
Capacitive load min. / max
CL
3 / 47
 pF
Storage temperature range T_stg −55~+125 °C
Operating temperature range T_use −40~+85 °C
Shock resistance   5000 g, 0.3 ms, ½ sine
Vibration resistance   20 g / 10–2000 Hz
Pins soldering

+235°C / 10 s max.
+260°C / 5 s max.

Terminations (Option )
SMD, formed leads (D2)

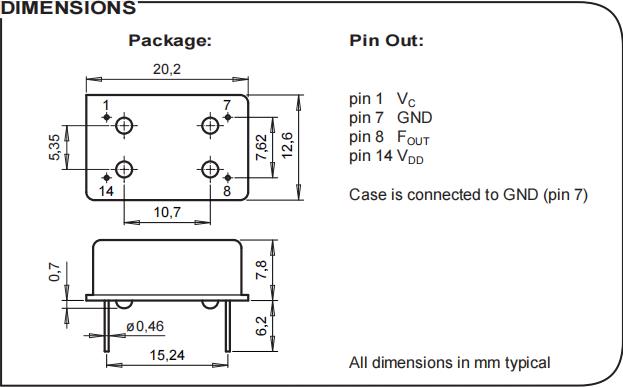

OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG尺寸圖
