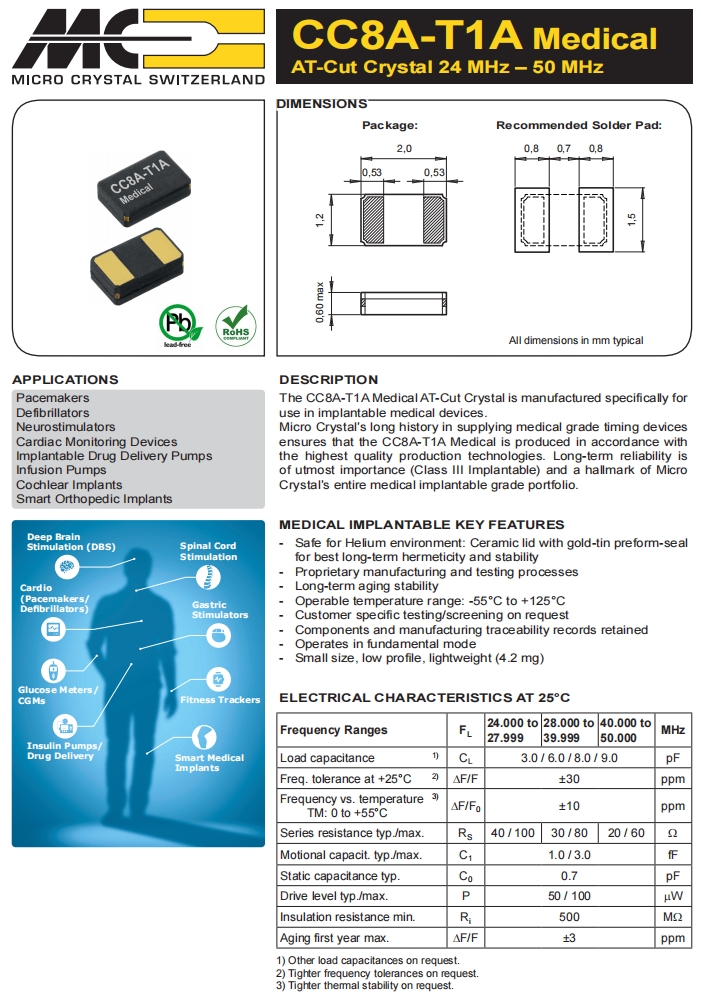

更多>>CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶醫療設備專用晶振
- 頻率：48MHz
- 尺寸：2.0×1.2mm
- 應 用： 微晶晶振,CC8A-T1A石英晶振,無源晶振,CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM晶振,貼片石英晶振,2012mm晶振,SMD晶振,頻率48MHz,負載9.0pF,工作溫度-40~125°C,頻率容差30ppm,小體積晶振,高可靠性晶振,低老化晶振,醫療設...
-
-
CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶醫療設備專用晶振,微晶晶振,CC8A-T1A石英晶振,無源晶振,CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM晶振,貼片石英晶振,2012mm晶振,SMD晶振,頻率48MHz,負載9.0pF,工作溫度-40~125°C,頻率容差30ppm,小體積晶振,高可靠性晶振,低老化晶振,醫療設備專用晶振,耳蝸植入設備晶振,心臟監測裝置晶振,去纖顫器晶振.
CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶醫療設備專用晶振特點：
•安全的氦氣環境:陶瓷蓋與金-錫預密封，最佳的長期密封性和穩定性
•專有的制造和測試流程
•長期老化穩定性
•工作溫度范圍:-55℃~ +125℃
•根據客戶要求進行特定測試/篩選
•保留組件和生產可追溯性記錄
•以基本模式運行
•體積小，外形低，重量輕(4.2毫克)
CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶醫療設備專用晶振規格表
|
Standard Frequency
|
FL | 48 | MHz |
|
Load capacitance
|
CL | 9.0 | pF |
|
Frequency tolerance at +25°C
|
ΔF/F | ±30 | ppm |
|
Frequency vs. temperature
TM: 0 to +55°C
|
ΔF/F0 | ±10 | ppm |
|
Series resistance typ./max.
|
RS
|
20 / 60
|
Ω |
|
Motional capacit. typ./max.
|
C1
|
1.0 / 3.0
|
fF
|
|
Static capacitance typ.
|
C0
|
0.7
|
pF
|
|
Drive level typ/max.
|
P | 50/100 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
Operating temperature range
|
T_use | −40~+125 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

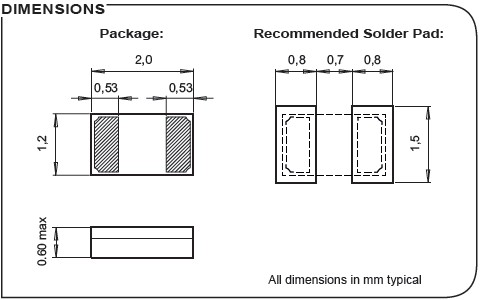

CC8A-T1A-48.000MHz-9.0pF-30ppm-TX-QM|微晶醫療設備專用晶振尺寸圖
.JPG)
