首頁歐美晶振微晶晶振CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振

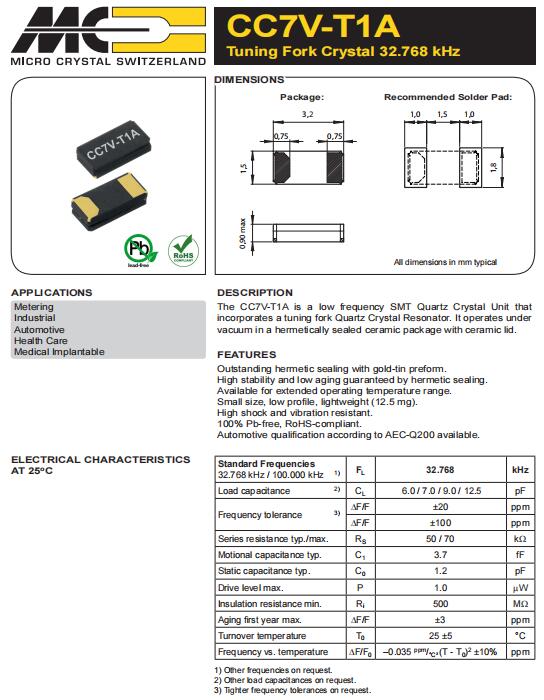

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振

  • 頻率：32.768KHz
  • 尺寸：3.2×1.5mm
  • 應　用： 型號CC7V-T1A,編碼CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,是一個低頻SMT石英晶體單元,包含一個音叉石英晶體諧振器,它在帶有陶瓷蓋的密封陶瓷封裝中的真空下工作,尺寸3215mm,頻率32.768KHz,負載6pF,工作溫度-55~125°C,具...
  • RoHS RoHS2

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振,型號CC7V-T1A,編碼CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,是一個低頻SMT石英晶體單元,包含一個音叉石英晶體諧振器,它在帶有陶瓷蓋的密封陶瓷封裝中的真空下工作,尺寸3215mm,頻率32.768KHz,負載6pF,工作溫度-55~125°C,具備AEC-Q200汽車資質,6G無線網絡晶振,物聯網晶振,汽車電子應用晶振,工業設備晶振.
CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振特點：
卓越的密封與金-錫預制
高穩定性，低老化，密封保證
可擴展工作溫度范圍
小尺寸，低輪廓，重量輕(12.5毫克)
高抗沖擊和抗振動
100%不含鉛，符合rohs標準
具備AEC-Q200汽車資質

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振規格表
標準頻率 FL 32.768 KHz
負載 CL 12.5 pF
頻率容差 ΔF/F ±20 ppm
串聯電阻最大值 RS 50/70 kΩ
儲存溫度 T_stg −55~+125 °C
工作溫度 T_use −40~+125 °C
最大驅動電平 P 0.5 μW
最小絕緣電阻
Ri
 500
MΩ
老化第一年 ΔF/F ±3 ppm

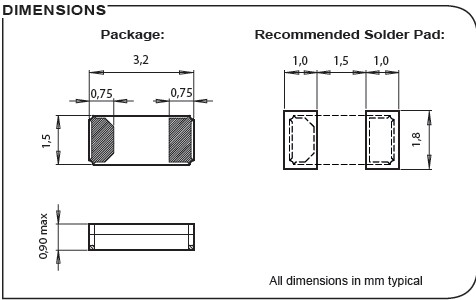

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G無線網絡晶振,瑞士微晶晶振尺寸圖


制造商零件編號 制造商 描述 產品類型
MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C Crystals
MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au Micro 晶振 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR Crystals
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-20PPM-TA-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-7pF-100PPM-TB-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-20PPM-TA-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC Micro 晶振 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C Crystals
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-7pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR Crystals
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM7V-T1A-32.768k-7pF-20PPM-TC-QA Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-9pF-100PPM-TC-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 Crystals
CM7V-T1A-32.768k-9pF-20PPM-TC-QA Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 Crystals
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 Crystals
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C Crystals
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C Crystals
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C Crystals
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C Crystals
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm Crystals
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm Crystals
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC Micro 晶振 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C Crystals
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC Micro 晶振 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C Crystals
