首頁進口晶振加高晶振HELE石英貼片晶振,X2B038400BA1H-U,6G基站晶振

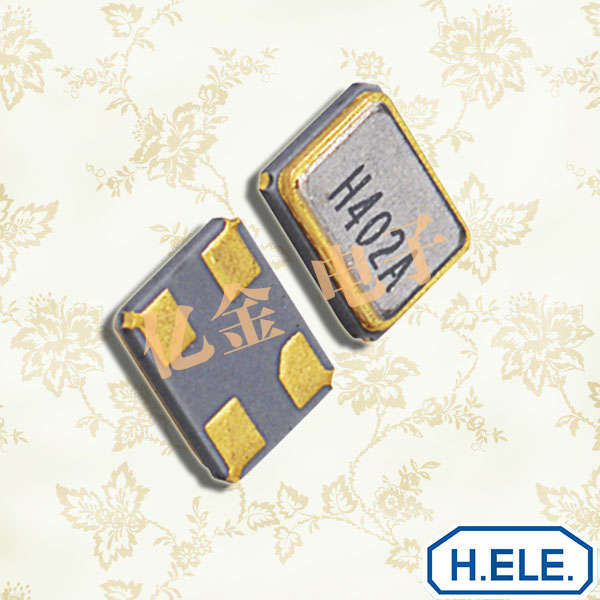

HELE石英貼片晶振,X2B038400BA1H-U,6G基站晶振

頻率：38.4MHz
尺寸：2.5×2.0mm
應　用： 臺灣進口晶振,HELE石英貼片晶振,HSX221SA無源晶振,石英晶體諧振器,X2B038400BA1H-U晶振,2520小體積晶振,頻率38.4MHz,負載10pF,頻率穩定性10ppm,工作溫度-20~70°C,耐熱性晶振,高品質晶振,6G基站晶振,射頻應用晶振,物聯...

HELE石英貼片晶振,X2B038400BA1H-U,6G基站晶振,臺灣進口晶振,HELE石英貼片晶振,HSX221SA無源晶振,石英晶體諧振器,X2B038400BA1H-U晶振,2520小體積晶振,頻率38.4MHz,負載10pF,頻率穩定性10ppm,工作溫度-20~70°C,耐熱性晶振,高品質晶振,6G基站晶振,射頻應用晶振,物聯網晶振,平板電腦晶振.

HELE石英貼片晶振,X2B038400BA1H-U,6G基站晶振特點：

■微型超薄貼片產品尺寸(2.5×2.0× 0.5 max)

■精度高，可靠性好，耐熱性好

■射頻應用、無線模塊設備、RFID應用和其他消費類產品的最佳解決方案

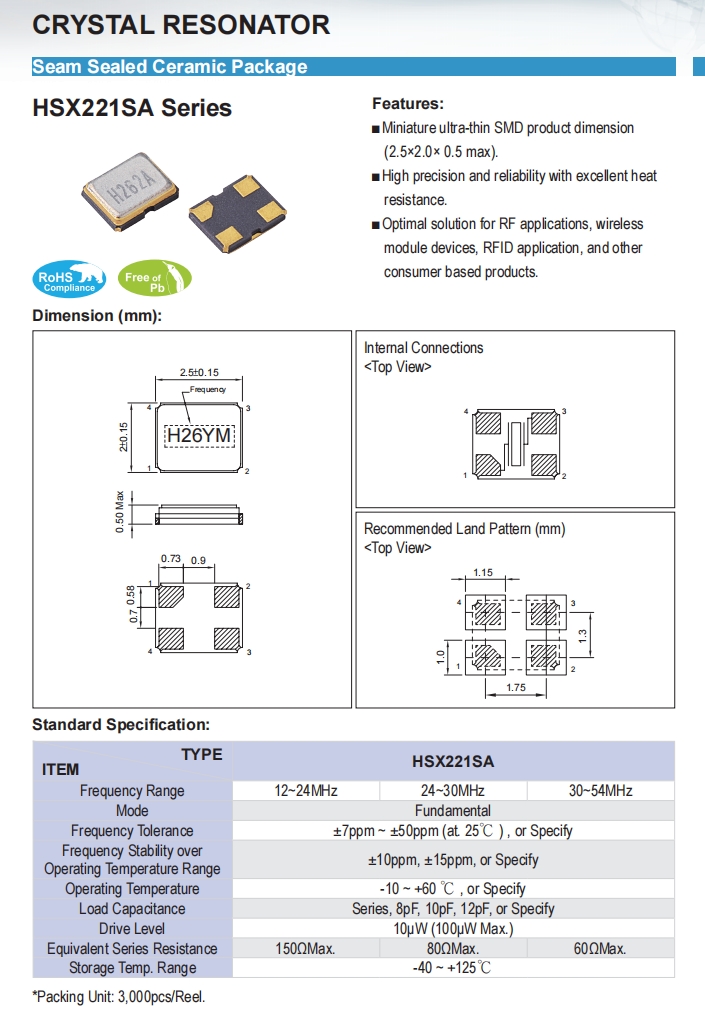

HELE石英貼片晶振,X2B038400BA1H-U,6G基站晶振規格表

項目	HSX221SA
頻率	38.4MHz
振動模式	Fundamental
頻率公差	±10ppm
頻率穩定性	±10ppm
負載電容	10pf
工作溫度	－20℃～＋70℃
保存溫度	－40℃～＋125℃
串聯阻力	60Ω Max.
驅動級別	100μW Max

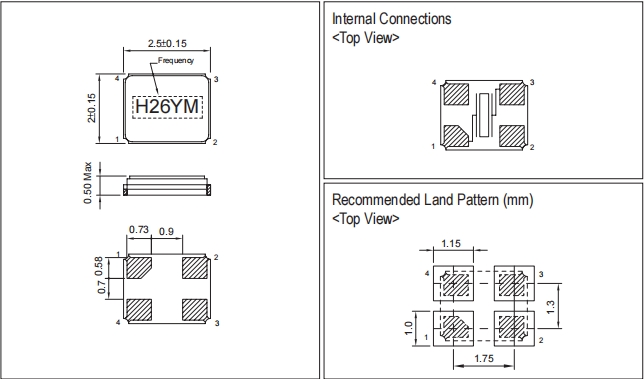

HELE石英貼片晶振,X2B038400BA1H-U,6G基站晶振尺寸圖

原廠編碼	制造廠家	型號	頻率	負載	頻率容差	頻率穩定性
X2B02863ADC1H-W	HELE晶振	HSX221SA	28.636360MHz	12pF	±20PPM	±20PPM
X2B010000ADC1H-W	HELE晶振	HSX221SA	10MHz	12pF	±20PPM	±20PPM
X2B011000ADC1H-W	HELE晶振	HSX221SA	11MHz	12pF	±20PPM	±20PPM
X2B012000ADC1H-W	HELE晶振	HSX221SA	12MHz	12pF	±20PPM	±20PPM
X2B013000ADC1H-W	HELE晶振	HSX221SA	13MHz	12pF	±20PPM	±20PPM
X2B014000ADC1H-W	HELE晶振	HSX221SA	14MHz	12pF	±20PPM	±20PPM
X2B015000ADC1H-W	HELE晶振	HSX221SA	15MHz	12pF	±20PPM	±20PPM
X2B016000ADC1H-W	HELE晶振	HSX221SA	16MHz	12pF	±20PPM	±20PPM
X2B017000ADC1H-W	HELE晶振	HSX221SA	17MHz	12pF	±20PPM	±20PPM
X2B018000ADC1H-W	HELE晶振	HSX221SA	18MHz	12pF	±20PPM	±20PPM
X2B019000ADC1H-W	HELE晶振	HSX221SA	19MHz	12pF	±20PPM	±20PPM
X2B020000ADC1H-W	HELE晶振	HSX221SA	20MHz	12pF	±20PPM	±20PPM
X2B021000ADC1H-W	HELE晶振	HSX221SA	21MHz	12pF	±20PPM	±20PPM
X2B022000ADC1H-W	HELE晶振	HSX221SA	22MHz	12pF	±20PPM	±20PPM
X2B023000ADC1H-W	HELE晶振	HSX221SA	23MHz	12pF	±20PPM	±20PPM
X2B024000ADC1H-W	HELE晶振	HSX221SA	24MHz	12pF	±20PPM	±20PPM
X2B025000ADC1H-W	HELE晶振	HSX221SA	25MHz	12pF	±20PPM	±20PPM
X2B026000ADC1H-W	HELE晶振	HSX221SA	26MHz	12pF	±20PPM	±20PPM
X2B027000ADC1H-W	HELE晶振	HSX221SA	27MHz	12pF	±20PPM	±20PPM
X2B028000ADC1H-W	HELE晶振	HSX221SA	28MHz	12pF	±20PPM	±20PPM
X2B029000ADC1H-W	HELE晶振	HSX221SA	29MHz	12pF	±20PPM	±20PPM
X2B030000ADC1H-W	HELE晶振	HSX221SA	30MHz	12pF	±20PPM	±20PPM
X2B031000ADC1H-W	HELE晶振	HSX221SA	31MHz	12pF	±20PPM	±20PPM
X2B032000ADC1H-W	HELE晶振	HSX221SA	32MHz	12pF	±20PPM	±20PPM
X2B033000ADC1H-W	HELE晶振	HSX221SA	33MHz	12pF	±20PPM	±20PPM
X2B034000ADC1H-W	HELE晶振	HSX221SA	34MHz	12pF	±20PPM	±20PPM
X2B035000ADC1H-W	HELE晶振	HSX221SA	35MHz	12pF	±20PPM	±20PPM
X2B036000ADC1H-W	HELE晶振	HSX221SA	36MHz	12pF	±20PPM	±20PPM
X2B037000ADC1H-W	HELE晶振	HSX221SA	37MHz	12pF	±20PPM	±20PPM
X2B038000ADC1H-W	HELE晶振	HSX221SA	38MHz	12pF	±20PPM	±20PPM
X2B039000ADC1H-W	HELE晶振	HSX221SA	39MHz	12pF	±20PPM	±20PPM
X2B040000ADC1H-W	HELE晶振	HSX221SA	40MHz	12pF	±20PPM	±20PPM
X2B038400BA1H-U	HELE晶振	HSX221SA	38.4MHz	10pF	±10PPM	±10PPM
X2B016000BA1H-U	HELE晶振	HSX221SA	16MHz	10pF	±10PPM	±10PPM
X2B017000BA1H-U	HELE晶振	HSX221SA	17MHz	10pF	±10PPM	±10PPM
X2B018000BA1H-U	HELE晶振	HSX221SA	18MHz	10pF	±10PPM	±10PPM
X2B019000BA1H-U	HELE晶振	HSX221SA	19MHz	10pF	±10PPM	±10PPM
X2B020000BA1H-U	HELE晶振	HSX221SA	20MHz	10pF	±10PPM	±10PPM
X2B021000BA1H-U	HELE晶振	HSX221SA	21MHz	10pF	±10PPM	±10PPM
X2B022000BA1H-U	HELE晶振	HSX221SA	22MHz	10pF	±10PPM	±10PPM
X2B023000BA1H-U	HELE晶振	HSX221SA	23MHz	10pF	±10PPM	±10PPM
X2B024000BA1H-U	HELE晶振	HSX221SA	24MHz	10pF	±10PPM	±10PPM
X2B025000BA1H-U	HELE晶振	HSX221SA	25MHz	10pF	±10PPM	±10PPM
X2B026000BA1H-U	HELE晶振	HSX221SA	26MHz	10pF	±10PPM	±10PPM
X2B027000BA1H-U	HELE晶振	HSX221SA	27MHz	10pF	±10PPM	±10PPM
X2B028000BA1H-U	HELE晶振	HSX221SA	28MHz	10pF	±10PPM	±10PPM
X2B029000BA1H-U	HELE晶振	HSX221SA	29MHz	10pF	±10PPM	±10PPM
X2B030000BA1H-U	HELE晶振	HSX221SA	30MHz	10pF	±10PPM	±10PPM
X2B031000BA1H-U	HELE晶振	HSX221SA	31MHz	10pF	±10PPM	±10PPM
X2B032000BA1H-U	HELE晶振	HSX221SA	32MHz	10pF	±10PPM	±10PPM
X2B033000BA1H-U	HELE晶振	HSX221SA	33MHz	10pF	±10PPM	±10PPM
X2B034000BA1H-U	HELE晶振	HSX221SA	34MHz	10pF	±10PPM	±10PPM
X2B035000BA1H-U	HELE晶振	HSX221SA	35MHz	10pF	±10PPM	±10PPM
X2B036000BA1H-U	HELE晶振	HSX221SA	36MHz	10pF	±10PPM	±10PPM
X2B037000BA1H-U	HELE晶振	HSX221SA	37MHz	10pF	±10PPM	±10PPM
X2B038000BA1H-U	HELE晶振	HSX221SA	38MHz	10pF	±10PPM	±10PPM
X2B039000BA1H-U	HELE晶振	HSX221SA	39MHz	10pF	±10PPM	±10PPM
X2B040000BA1H-U	HELE晶振	HSX221SA	40MHz	10pF	±10PPM	±10PPM
X2B041000BA1H-U	HELE晶振	HSX221SA	41MHz	10pF	±10PPM	±10PPM
X2B042000BA1H-U	HELE晶振	HSX221SA	42MHz	10pF	±10PPM	±10PPM
X2B043000BA1H-U	HELE晶振	HSX221SA	43MHz	10pF	±10PPM	±10PPM
X2B044000BA1H-U	HELE晶振	HSX221SA	44MHz	10pF	±10PPM	±10PPM
X2B045000BA1H-U	HELE晶振	HSX221SA	45MHz	10pF	±10PPM	±10PPM
X2B046000BA1H-U	HELE晶振	HSX221SA	46MHz	10pF	±10PPM	±10PPM
