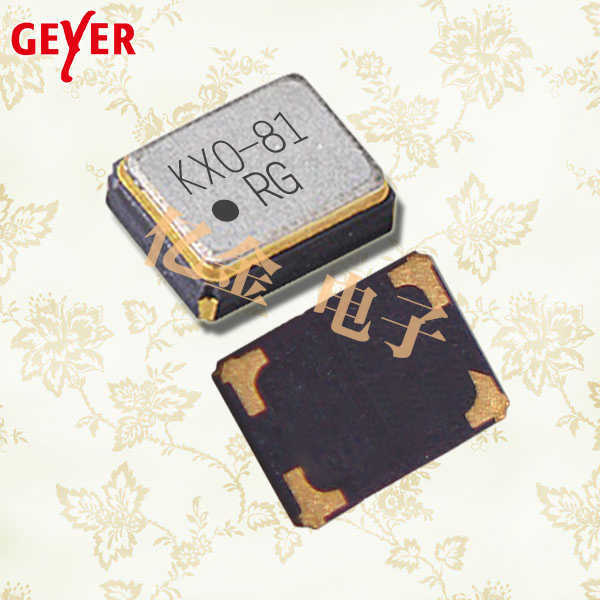

格耶進口晶振,KXO-81小尺寸晶振,溫補晶振，2016mm體積的溫補晶振(TCXO),是目前有源晶振中體積最小的一款,產品本身帶溫度補償作用的晶體振蕩器,該體積產品最適合于GPS,以及衛星通訊系統,智能電話等多用途的高穩定的頻率溫度特性晶振.為對應低電源電壓的產品.(DC+1.8V±0.1Vto+2.9V±0.1V對應IC可能)高度:最高0.8mm,體積:0.0022cm3,重量:0.008g,超小型,輕型,低消耗電流,表面貼片型產品.(可對應回流焊)無鉛產品.滿足無鉛焊接的高溫回流溫度曲線要求,帶有AFC(頻率控制)功能,Enable/Disable功能,產品本身可根據使用需要進行選擇.

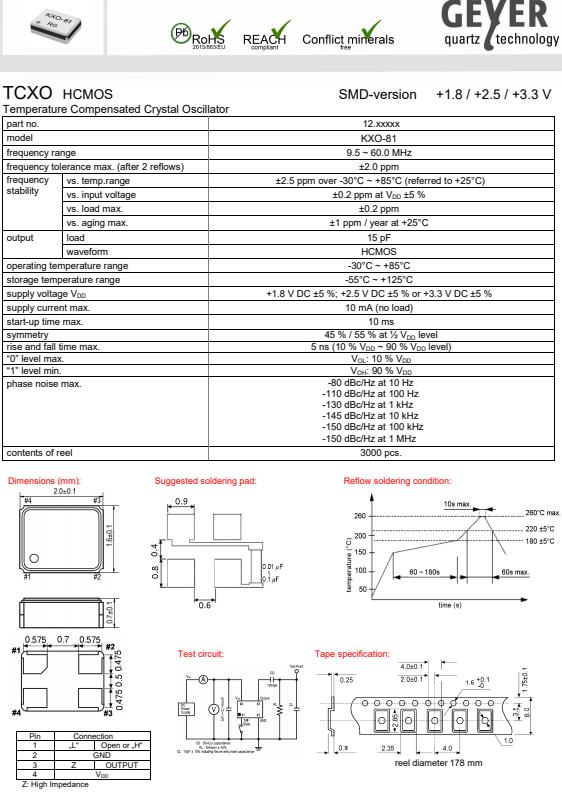

part no.		12.xxxxx
model		KXO-81
frequency range		9.5 ~ 60.0 MHz
initial frequency tolerance max.		±2.0 ppm
frequency stability	vs. temp.range	±2.5 ppm over -30°C ~ +85°C (referred to +25°C)
	vs. input voltage	±0.2 ppm at VDD ±5 %
	vs. load max.	±0.2 ppm
	vs. aging max.	±1 ppm / year at +25°C
output	load	15 pF
	waveform	HCMOS
operating temperature range		-30°C ~ +85°C
storage temperature range		-55°C ~ +125°C
supply voltage VDD		+1.8 V DC ±5 %; +2.5 V DC ±5 % or +3.3 V DC ±5 %
supply current		10 mA (no load)
start-up time max.		10 ms
symmetry		45 % / 55 % at ½ VDD level
rise and fall time max.		5 ns (10 % VDD ~ 90 % VDD level)
“0” level max.		VOL: 10 % VDD
“1” level min.		VOH: 90 % VDD
phase noise max.		-80 dBc/Hz at 10 Hz -110 dBc/Hz at 100 Hz -130 dBc/Hz at 1 kHz -145 dBc/Hz at 10 kHz -150 dBc/Hz at 100 kHz -150 dBc/Hz at 1 MHz
contents of reel		3000 pcs.
