更多>>FOX晶振,FC3BACBDI40.0-T3,6G基站晶振
- 頻率：40MHz
- 尺寸：3.2×2.5mm
- 應 用： FOX晶振,歐美進口晶振,C3BA貼片石英晶振,FC3BACBDI40.0-T3晶振,3225mm晶振,無源晶振,頻率40MHz,負載8pF,頻率穩定性30ppm,工作溫度-40~125°C,小體積晶振,耐高溫晶振,6G基站晶振,汽車影音系統晶振,GPS導航晶振, 光收發...
-
-
FOX晶振,FC3BACBDI40.0-T3,6G基站晶振,FOX晶振,歐美進口晶振,C3BA貼片石英晶振,FC3BACBDI40.0-T3晶振,3225mm晶振,無源晶振,頻率40MHz,負載8pF,頻率穩定性30ppm,工作溫度-40~125°C,小體積晶振,耐高溫晶振,6G基站晶振,汽車影音系統晶振,GPS導航晶振, 光收發器晶振.
FOX晶振,FC3BACBDI40.0-T3,6G基站晶振特點：
AEC Q200合格
TS-16949質量管理體系
公差低至±10ppm
穩定性低至±20 PPM
FOX晶振,FC3BACBDI40.0-T3,6G基站晶振規格表
| 參數 | 數值 |
| 標準頻率 | 40MHz |
| 頻率容差 | 30ppm |
| 頻率穩定性 | 50ppm |
| 工作溫度 | −40~+125°C |
| 儲存溫度 | −55~+150°C |
| 老化 | ±5ppm |
| 負載 | 8pF |
| 并聯電容 | 3pF Max |
| 激勵功率 | 100 µW MAX |
| 濕度敏感等級(MSL) | 1 |
| 最大焊接溫度/時間 |
260ºC / 10 Seconds
|
| 無鉛 |
Yes
|
| 通過無鉛認證 |
No Exemptions
|
.jpg)

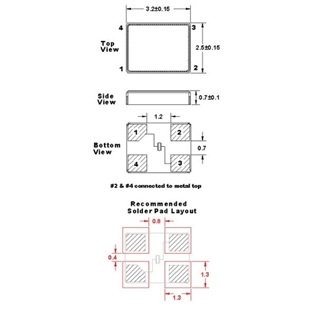

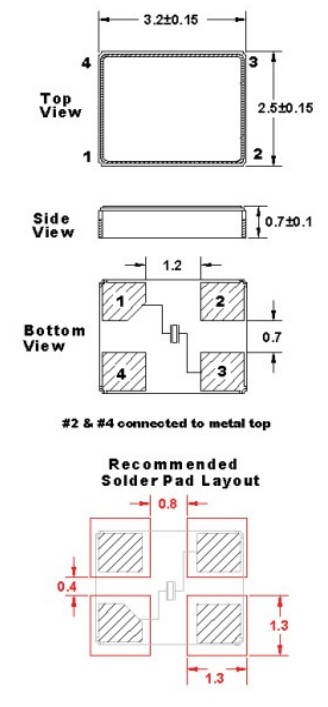

FOX晶振,FC3BACBDI40.0-T3,6G基站晶振尺寸圖
| 制造商零件編號 | 供應商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 | 工作溫度 |
| FC3BACBDI40.0-T3 | Fox 晶振 | C3BA | 40 MHz | ±50ppm | ±30ppm | 8pF | -40°C ~ 125°C |
| FC3BACAGI08.0-T3 | Fox 晶振 | C3BA | 8 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI09.0-T3 | Fox 晶振 | C3BA | 9 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI10.0-T3 | Fox 晶振 | C3BA | 10 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI11.0-T3 | Fox 晶振 | C3BA | 11 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI12.0-T3 | Fox 晶振 | C3BA | 12 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI13.0-T3 | Fox 晶振 | C3BA | 13 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI14.0-T3 | Fox 晶振 | C3BA | 14 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI15.0-T3 | Fox 晶振 | C3BA | 15 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI16.0-T3 | Fox 晶振 | C3BA | 16 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI17.0-T3 | Fox 晶振 | C3BA | 17 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI18.0-T3 | Fox 晶振 | C3BA | 18 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI19.0-T3 | Fox 晶振 | C3BA | 19 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI20.0-T3 | Fox 晶振 | C3BA | 20 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI21.0-T3 | Fox 晶振 | C3BA | 21 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI22.0-T3 | Fox 晶振 | C3BA | 22 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI23.0-T3 | Fox 晶振 | C3BA | 23 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI24.0-T3 | Fox 晶振 | C3BA | 24 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI25.0-T3 | Fox 晶振 | C3BA | 25 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI26.0-T3 | Fox 晶振 | C3BA | 26 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI27.0-T3 | Fox 晶振 | C3BA | 27 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI28.0-T3 | Fox 晶振 | C3BA | 28 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI29.0-T3 | Fox 晶振 | C3BA | 29 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI30.0-T3 | Fox 晶振 | C3BA | 30 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI31.0-T3 | Fox 晶振 | C3BA | 31 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI32.0-T3 | Fox 晶振 | C3BA | 32 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI33.0-T3 | Fox 晶振 | C3BA | 33 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI34.0-T3 | Fox 晶振 | C3BA | 34 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI35.0-T3 | Fox 晶振 | C3BA | 35 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI36.0-T3 | Fox 晶振 | C3BA | 36 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI37.0-T3 | Fox 晶振 | C3BA | 37 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
| FC3BACAGI38.0-T3 | Fox 晶振 | C3BA | 38 MHz | ±100ppm | ±30ppm | 12pF | -40°C ~ 125°C |
.jpg)
.jpg)
