首頁歐美晶振 FOX晶振FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振

FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振

頻率：38MHz
尺寸：2.0×1.6mm
應　用： FOX晶振,歐美進口晶振,C1BA無源晶振,FC1BACBEI38.0-T3晶振,2016貼片石英晶振,小體積晶振,頻率38MHz,負載10pF,頻率穩定性30ppm,工作溫度-40~125°C,耐高溫晶振,無鉛環保晶振,6G光纖通道晶振,汽車音響控制器晶振,網絡終...

FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振,FOX晶振,歐美進口晶振,C1BA無源晶振,FC1BACBEI38.0-T3晶振,2016貼片石英晶振,小體積晶振,頻率38MHz,負載10pF,頻率穩定性30ppm,工作溫度-40~125°C,耐高溫晶振,無鉛環保晶振,6G光纖通道晶振,汽車音響控制器晶振,網絡終端晶振,GPS導航晶振.

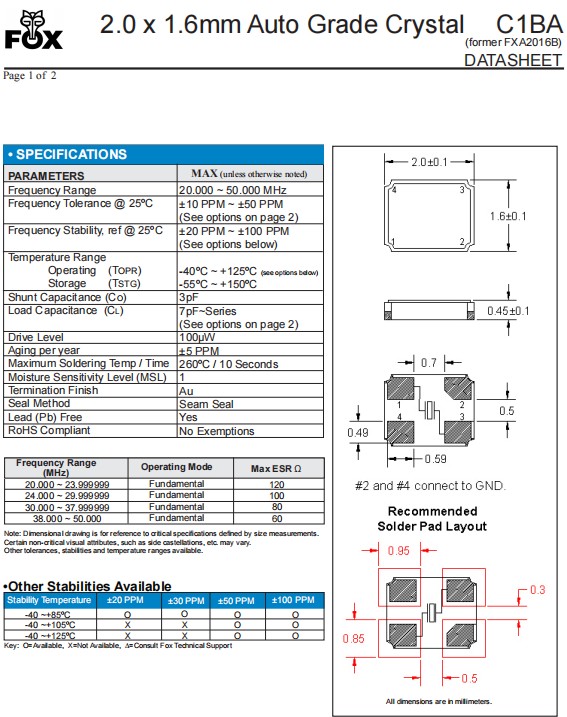

FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振規格表

參數	數值
標準頻率	38MHz
頻率容差	30ppm
頻率穩定性	50ppm
工作溫度	−40~+125°C
儲存溫度	−55~+150°C
老化	±5ppm
負載	10pF
并聯電容	3pF Max
激勵功率	100 µW MAX
濕度敏感等級(MSL)	1
濕度敏感等級(MSL)	1
最大焊接溫度/時間	260ºC / 10 Seconds
無鉛	Yes
通過無鉛認證	No Exemptions

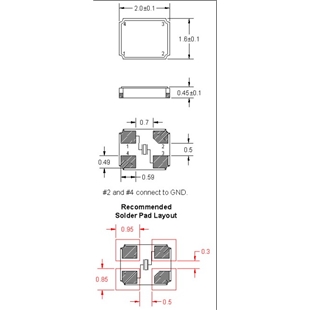

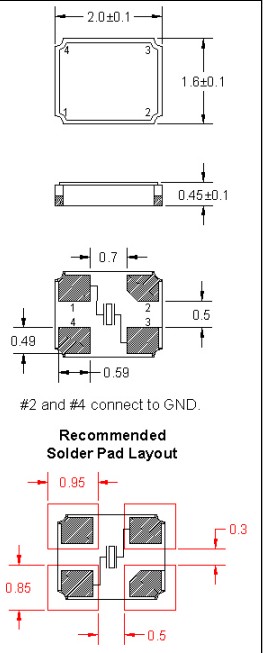

FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振尺寸圖

制造商零件編號	供應商	系列	頻率	頻率穩定性	頻率容差	負載電容	工作溫度
FC1BACBEI21.0-T3	Fox 晶振	C1BA	21 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI22.0-T3	Fox 晶振	C1BA	22 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI23.0-T3	Fox 晶振	C1BA	23 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI24.0-T3	Fox 晶振	C1BA	24 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI25.0-T3	Fox 晶振	C1BA	25 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI26.0-T3	Fox 晶振	C1BA	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI27.0-T3	Fox 晶振	C1BA	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI28.0-T3	Fox 晶振	C1BA	28 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI29.0-T3	Fox 晶振	C1BA	29 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI30.0-T3	Fox 晶振	C1BA	30 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI31.0-T3	Fox 晶振	C1BA	31 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI32.0-T3	Fox 晶振	C1BA	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI33.0-T3	Fox 晶振	C1BA	33 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI34.0-T3	Fox 晶振	C1BA	34 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI35.0-T3	Fox 晶振	C1BA	35 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI36.0-T3	Fox 晶振	C1BA	36 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI37.0-T3	Fox 晶振	C1BA	37 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI38.0-T3	Fox 晶振	C1BA	38 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI39.0-T3	Fox 晶振	C1BA	39 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI40.0-T3	Fox 晶振	C1BA	40 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI41.0-T3	Fox 晶振	C1BA	41 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI42.0-T3	Fox 晶振	C1BA	42 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI43.0-T3	Fox 晶振	C1BA	43 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI44.0-T3	Fox 晶振	C1BA	44 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI45.0-T3	Fox 晶振	C1BA	45 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI46.0-T3	Fox 晶振	C1BA	46 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI47.0-T3	Fox 晶振	C1BA	47 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI48.0-T3	Fox 晶振	C1BA	48 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI49.0-T3	Fox 晶振	C1BA	49 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
FC1BACBEI50.0-T3	Fox 晶振	C1BA	50 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
