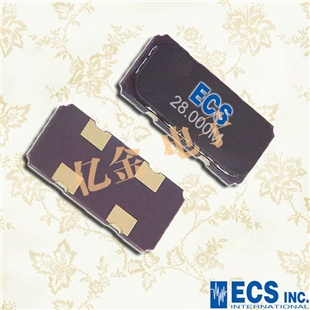

ECS-166.66-18-18-TR|16.666M|30PPM|18PF|-40~85℃
- 頻率：16.666MHz
- 尺寸：11.80mm x 5.50mm
- 應 用： ECS-166.66-18-18-TR|16.666M|30PPM|18PF|-40~85℃，ECS石英晶體振蕩器，成本效益高，款式低調，可在工業溫度使用。符合RoHS環保標準，CSM-12是一種低輪廓的SMD晶體，占地面積為11.8x5.5mm。這個成本效益的包裝提供2....
-
-
.jpg)

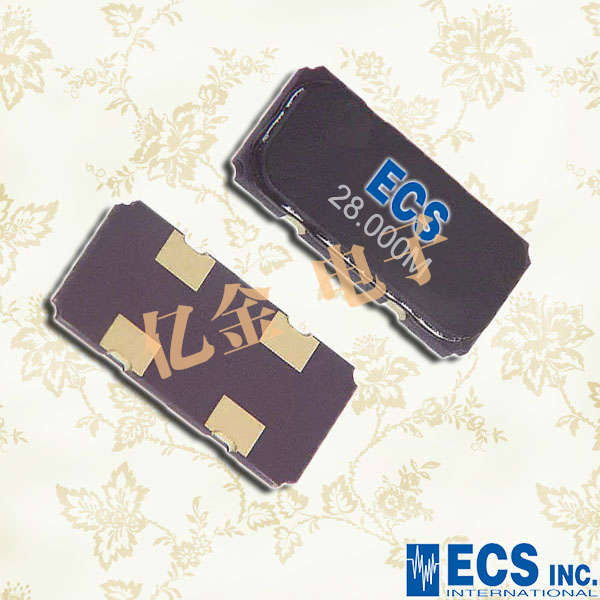

ECS-166.66-18-18-TR|16.666M|30PPM|18PF|-40~85℃， ECS石英晶體振蕩器，成本效益高，款式低調，可在工業溫度使用。符合RoHS環保標準，CSM-12是一種低輪廓的SMD晶體，占地面積為11.8 x 5.5 mm。這個成本效益的包裝提供2.5毫米的高度。
ECS-166.66-18-18-TR|16.666M|30PPM|18PF|-40~85℃
| 參數 | 環境 | CSM-12 | 單位 | ||
| 最小值 | 典型的 | 最大值 | |||
| 頻率 | 3.579 | 30.000 | MHz | ||
| 工作模式 | Fundamental | ||||
| 頻率容差 | @ +25°C | ± 30 | ppm | ||
| 頻率偏差度 | -10 ~ +70°C | ± 50 | ppm | ||
| -40 ~ +85°C | ±100 | ppm | |||
| 并聯電容 | Co | 7 | pF | ||
| 負載電容 | Specify in P/N | 10 | 20 | Series | pF |
| 驅動電平 | DL | 100 | μW | ||
| 工作溫度 | Topr | --40 | +85 | °C | |
| 儲存溫度 | Tstg | --55 | +125 | °C | |
| 老化 | @ +25°C ±3°C | ±5 | ppm | ||
.jpg)

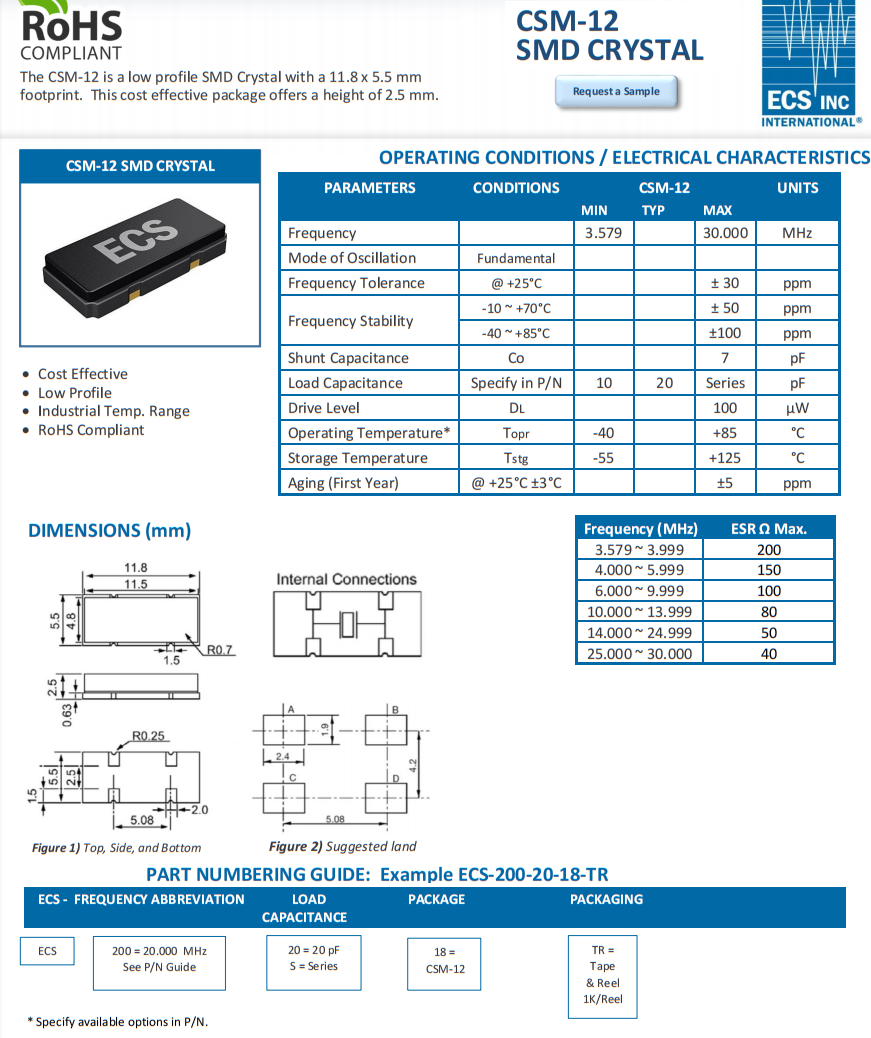

ECS-166.66-18-18-TR|16.666M|30PPM|18PF|-40~85℃
.png)
| ECS原廠編碼 | 型號 | 類型 | 頻率 | 頻率容差 | 頻率偏差度 | 負載電容 |
| ECS-100-18-18-TR | CSM-12 | MHz Crystal | 10MHz | ±100ppm | ±30ppm | 18pF |
| ECS-100-S-18-TR | CSM-12 | MHz Crystal | 10MHz | ±100ppm | ±30ppm | Series |
| ECS-110.5-18-18-TR | CSM-12 | MHz Crystal | 11.0592MHz | ±100ppm | ±30ppm | 18pF |
| ECS-110.5-20-18-TR | CSM-12 | MHz Crystal | 11.0592MHz | ±100ppm | ±30ppm | 20pF |
| ECS-110.5-S-18-TR | CSM-12 | MHz Crystal | 11.0592MHz | ±100ppm | ±30ppm | Series |
| ECS-112.896-18-18-TR | CSM-12 | MHz Crystal | 11.2896MHz | ±100ppm | ±30ppm | 18pF |
| ECS-120-18-18-TR | CSM-12 | MHz Crystal | 12MHz | ±100ppm | ±30ppm | 18pF |
| ECS-120-S-18-TR | CSM-12 | MHz Crystal | 12MHz | ±100ppm | ±30ppm | Series |
| ECS-122.8-18-18-TR | CSM-12 | MHz Crystal | 12.288MHz | ±100ppm | ±30ppm | 18pF |
| ECS-143-20-18-TR | CSM-12 | MHz Crystal | 14.31818MHz | ±100ppm | ±30ppm | 20pF |
| ECS-143-S-18-TR | CSM-12 | MHz Crystal | 14.31818MHz | ±100ppm | ±30ppm | Series |
| ECS-147.4-18-18-TR | CSM-12 | MHz Crystal | 14.7456MHz | ±100ppm | ±30ppm | 18pF |
| ECS-153.6-18-18-TR | CSM-12 | MHz Crystal | 15.36MHz | ±100ppm | ±30ppm | 18pF |
| ECS-160-18-18-TR | CSM-12 | MHz Crystal | 16MHz | ±100ppm | ±30ppm | 18pF |
| ECS-160-S-18-TR | CSM-12 | MHz Crystal | 16MHz | ±100ppm | ±30ppm | Series |
| ECS-166.66-18-18-TR | CSM-12 | MHz Crystal | 16.666MHz | ±100ppm | ±30ppm | 18pF |
| ECS-184-18-18-TR | CSM-12 | MHz Crystal | 18.432MHz | ±100ppm | ±30ppm | 18pF |
| ECS-184-S-18-TR | CSM-12 | MHz Crystal | 18.432MHz | ±100ppm | ±30ppm | Series |
| ECS-196.6-S-18-TR | CSM-12 | MHz Crystal | 19.6608MHz | ±100ppm | ±30ppm | Series |
| ECS-200-18-18-TR | CSM-12 | MHz Crystal | 20MHz | ±100ppm | ±30ppm | 18pF |
| ECS-200-20-18-TR | CSM-12 | MHz Crystal | 20MHz | ±100ppm | ±30ppm | 20pF |
| ECS-200-S-18-TR | CSM-12 | MHz Crystal | 20MHz | ±100ppm | ±30ppm | Series |
| ECS-204.8-18-18-TR | CSM-12 | MHz Crystal | 20.48MHz | ±100ppm | ±30ppm | 18pF |
| ECS-221-18-18-TR | CSM-12 | MHz Crystal | 22.1184MHz | ±100ppm | ±30ppm | 18pF |
| ECS-240-16-18-TR | CSM-12 | MHz Crystal | 24MHz | ±100ppm | ±30ppm | 16pF |
| ECS-240-18-18-TR | CSM-12 | MHz Crystal | 24MHz | ±100ppm | ±30ppm | 18pF |
| ECS-240-20-18-TR | CSM-12 | MHz Crystal | 24MHz | ±100ppm | ±30ppm | 20pF |
| ECS-245.7-18-18-TR | CSM-12 | MHz Crystal | 24.576MHz | ±100ppm | ±30ppm | 18pF |
| ECS-250-18-18-TR | CSM-12 | MHz Crystal | 25MHz | ±100ppm | ±30ppm | 18pF |
| ECS-35-17-18-TR | CSM-12 | MHz Crystal | 3.579545MHz | ±100ppm | ±30ppm | 17pF |
| ECS-35-18-18-TR | CSM-12 | MHz Crystal | 3.579545MHz | ±100ppm | ±30ppm | 18pF |
| ECS-36-18-18-TR | CSM-12 | MHz Crystal | 3.6864MHz | ±100ppm | ±30ppm | 18pF |
| ECS-36-20-18-TR | CSM-12 | MHz Crystal | 3.6864MHz | ±100ppm | ±30ppm | 20pF |
| ECS-36-S-18-TR | CSM-12 | MHz Crystal | 3.6864MHz | ±100ppm | ±30ppm | Series |
| ECS-40-18-18-TR | CSM-12 | MHz Crystal | 4MHz | ±100ppm | ±30ppm | 18pF |
| ECS-40-20-18-TR | CSM-12 | MHz Crystal | 4MHz | ±100ppm | ±30ppm | 20pF |
| ECS-40-S-18-TR | CSM-12 | MHz Crystal | 4MHz | ±100ppm | ±30ppm | Series |
| ECS-41-18-18-TR | CSM-12 | MHz Crystal | 4.096MHz | ±100ppm | ±30ppm | 18pF |
| ECS-49-18-18-TR | CSM-12 | MHz Crystal | 4.9152MHz | ±100ppm | ±30ppm | 18pF |
| ECS-49-20-18-TR | CSM-12 | MHz Crystal | 4.9152MHz | ±100ppm | ±30ppm | 20pF |
| ECS-49-S-18-TR | CSM-12 | MHz Crystal | 4.9152MHz | ±100ppm | ±30ppm | Series |
| ECS-50-18-18-TR | CSM-12 | MHz Crystal | 5MHz | ±100ppm | ±30ppm | 18pF |
| ECS-60-18-18-TR | CSM-12 | MHz Crystal | 6MHz | ±100ppm | ±30ppm | 18pF |
| ECS-61-18-18-TR | CSM-12 | MHz Crystal | 6.144MHz | ±100ppm | ±30ppm | 18pF |
| ECS-61-32-18-TR | CSM-12 | MHz Crystal | 6.144MHz | ±100ppm | ±30ppm | 32pF |
| ECS-73-18-18-TR | CSM-12 | MHz Crystal | 7.3728MHz | ±100ppm | ±30ppm | 18pF |
| ECS-73-20-18 | CSM-12 | MHz Crystal | 7.3728MHz | ±100ppm | ±30ppm | 20pF |
| ECS-73-S-18-TR | CSM-12 | MHz Crystal | 7.3728MHz | ±100ppm | ±30ppm | Series |
| ECS-80-18-18-TR | CSM-12 | MHz Crystal | 8MHz | ±100ppm | ±30ppm | 18pF |
| ECS-80-20-18-TR | CSM-12 | MHz Crystal | 8MHz | ±100ppm | ±30ppm | 20pF |
| ECS-80-S-18-TR | CSM-12 | MHz Crystal | 8MHz | ±100ppm | ±30ppm | Series |
| ECS-98.3-20-18-TR | CSM-12 | MHz Crystal | 9.8304MHz | ±100ppm | ±30ppm | 20pF |
| ECS-98.3-S-18-TR | CSM-12 | MHz Crystal | 9.8304MHz | ±100ppm | ±30ppm | Series |
